Ingersoll Rand® QA6AALD090NP43S08

Name: AIR ANGLE NUTRUNNER 1/2" SQ 90 NM TORQUE 185 RPM STALL CLUTCH (ING-QA6AALD090NP43S08-@)
Brand: Ingersoll Rand®
SKU: ING-QA6AALD090NP43S08
Price: 3374.45 USD
Availability: InStock

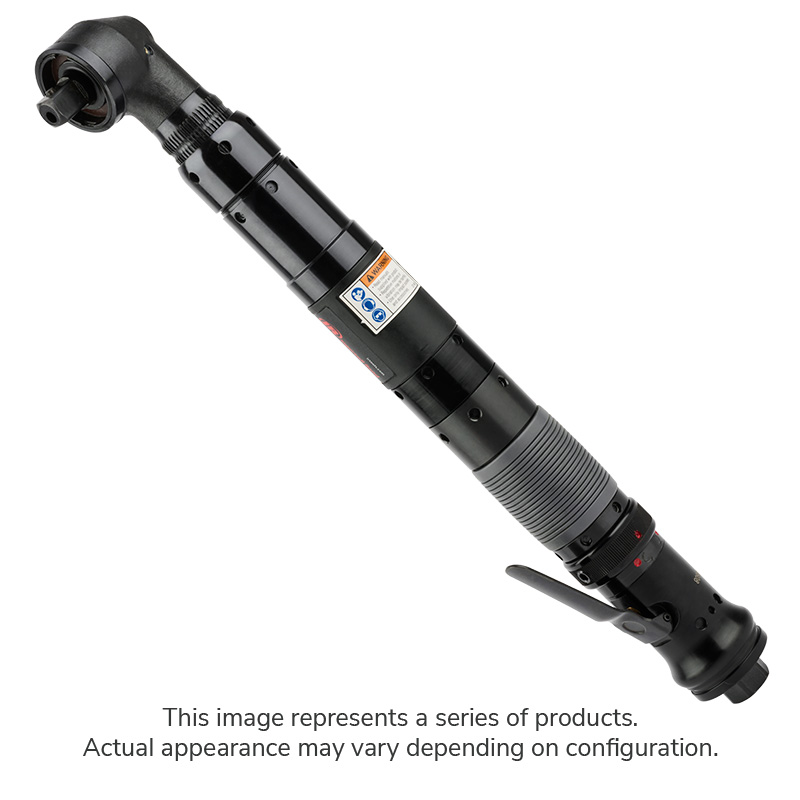

QA6 Series 1/2" Air Angle Nutrunner, 90 Nm Torque, 185 rpm, Lever Start, Stall Clutch

$3,374.45

BIPN:: ING-QA6AALD090NP43S08
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

QA6 Series Nutrunners - Handheld Angle Stall

Designed for soft pull applications in wood and other materials, QA6 Series Angle Stall nutrunners are easy to maneuver, and applied torque is controlled by the operator. You are in complete control with this tool.

Tool/Kit Tool Only
Series QA6 Series
Drive Type Square
Drive Size 1/2 in
Torque Rating 66 ft-lb
Torque Rating (Nm) 90 Nm
Speed 185 rpm
Horsepower 0.66 hp
Air Flow Rate 36 cfm
Air Pressure 90 psi
Air Inlet 3/8 in NPT
Minimum Hose Size 1/2 in
Clutch Type Stall
Handle Style Right Angle
Throttle Style Lever
Mounting Type Handheld
Sound Level 82.5 dB

Performance: Offers powerful performance up to 797 in-lbs. of torque and speeds up to 185 RPM.
Durable: With the precision shutoff clutch tested to 1 million cycles without failure, you can be sure this tool will function the way you want it to.
Easy to Maintain: A Lube-free motor makes for easy maintenance and this tool will work as well as you do.
User Experience: The 360-degree indexing of angle head provides maximum flexibility, while the position of the reverse ring is ideally located for operator comfort.
Ergonomic: Slim, compact design for space-saving fixturing.
Recommended for applications where precise torque control is required.
