ARO® 666053-388

Name: 1/2" DIAPHRAGM PUMP, 10 GPM MAX, NON METALLIC, POLY CENTER / 3PC MANIFOLDS, POLY SEAT, POLYURETHANE BALL / DIAPHRAGM (ARO-666053-388)
Brand: ARO®
SKU: ARO-666053-388
Price: 854.1 USD
Availability: InStock

Compact Series 1/2" Non-Metallic Diaphragm Pump, Classic Style, 13 GPM, Poly Caps & Manifold, Poly Seat, Polyurethane Ball & Diaphragm

$854.10

BIPN:: ARO-666053-388
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

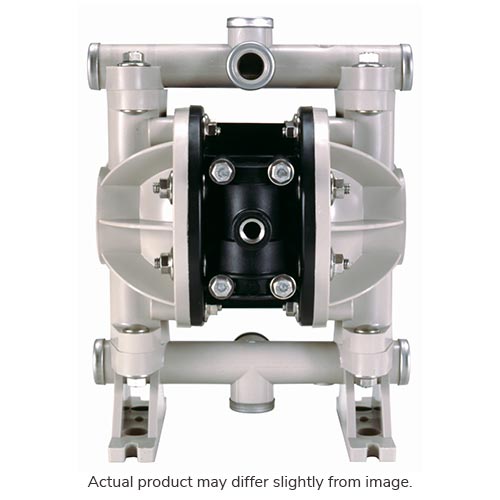

ARO® Compact Series 1/2" Non-Metallic Diaphragm Pump, 13 GPM, Classic Style, Polypropylene Fluid Caps & Manifold, Polypropylene Seat, Polyurethane Ball & Diaphragm

This compact, non-metallic 1/2" classic-style pump features big performance in a small package with a flow rate of up to 13 GPM and a motor design that delivers optimum air efficiency. ARO's patented 'Unbalanced' air valve ensures reliable, no-stall operation. Bolted construction provides leak-free fluid handling, and a modular design ensures ease of service. ARO® Pro Series air operated diaphragm pumps are ideal for general industrial and OEM installation applications. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they can be used in potentially explosive areas.

Type Non-Metallic
Series Compact
Nominal Size 1/2 in
Inlet Size 1/2 in - 14
Outlet Size 1/2 in - 14
Connection Style NPTF -1 Female
Air Inlet Size 1/4 - 18 PTF SAE Short
Valve Type SimulShift™
Flow Rate 13 gpm
Maximum Diameter of Solids 3/32 in
Maximum Pressure 100 psi
Center Body Material Polypropylene
Housing Material Polypropylene
Check Seat Material Polypropylene
Diaphragm Material Polyurethane
Ball Material Polyurethane

Designed to meet your OEM application needs
Motor design delivers optimum air efficiency
Non-metallic construction for complete corrosion resistance
ARO's patented 'Unbalanced' air valve ensures no-stall operation
Bolted construction for leak-free fluid handling
Ease of service through modular design

1/2" DIAPHRAGM PUMP, 10 GPM MAX, NON METALLIC, POLY CENTER / MANIFOLDS, POLY SEAT, NITRILE BALL / DIAPHRAGM (ARO-66605J-322)

Compact Series 1/2" Non-Metallic Diaphragm Pump, Classic Style, 13 GPM, Poly Caps & 1-Piece Manifold, Poly Seat, Nitrile Ball & Diaphragm

$826.25

BIPN: ARO-66605J-322 Quantity Interval: 1 / EA - Each

2" DIAPHRAGM PUMP, 145 GPM MAX, NON-METALLIC, ALUM CENTER, POLY 3PC MANIFOLDS (CENTER FLANGED), SS HARDWARE, POLY SEAT, SANTOPRENE BALL / DIAPHRAGM (ARO-6662A3-3EB-C)

Pro Series 2" Non-Metallic Diaphragm Pump, 145 GPM, Aluminum Center, Poly Caps & 3-Piece Manifold w/Flange, Poly Seat, Santoprene Ball & Diaphragm

$4,305.99

BIPN: ARO-6662A3-3EB-C Quantity Interval: 1 / EA - Each

2" DIAPHRAGM PUMP, 145 GPM MAX, NON-METALLIC, CAST IRON CENTER, POLY 3PC MANIFOLDS (CENTER FLANGED), SS HARDWARE, POLY SEAT, PTFE BALL / DIAPHRAGM (ARO-6662B3-344-C)

Pro Series 2" Non-Metallic Diaphragm Pump, 145 GPM, Cast Iron Center, Poly Caps & 3-Piece Manifold w/Flange, Poly Seat, PTFE Ball, PTFE/Santoprene Diaphragm

$5,403.60

BIPN: ARO-6662B3-344-C Quantity Interval: 1 / EA - Each

1/4" DIAPHRAGM PUMP, 5.3 GPM MAX, NON METALLIC, POLY CENTER / MANIFOLDS, SS HARDWARE, POLY SEAT, SANTOPRENE BALL / DIAPHRAGM (ARO-PD01P-HPS-PAA-A-@)

Compact Series 1/4" Non-Metallic Diaphragm Pump, 5.3 GPM, Poly Center, NPT BSP Hybrid Connections, Poly Wetted Parts, SS Hardware, Poly Seat, Santoprene Ball & Diaphragm

$393.30

BIPN: ARO-PD01P-HPS-PAA-A Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

1/4" DIAPHRAGM PUMP, 5.3 GPM MAX, NON METALLIC, POLY CENTER / MANIFOLDS, SS HARDWARE, POLY SEAT, PTFE BALL / DIAPHRAGM (ARO-PD01P-HPS-PTT-A)

Compact Series 1/4" Non-Metallic Diaphragm Pump, 5.3 GPM, Poly Center, NPT BSP Hybrid Connections, Poly Wetted Parts, SS Hardware, Poly Seat, PTFE Ball & Diaphragm

$534.60

BIPN: ARO-PD01P-HPS-PTT-A Quantity Interval: 1 / EA - Each

1/2" DIAPHRAGM PUMP, 14.4 GPM MAX, NON METALLIC, POLY CENTER / MANIFOLDS, SS HARDWARE, POLY SEAT, SANTOPRENE BALL / DIAPHRAGM (ARO-PD05P-APS-PAA-B)

Compact Series 1/2" Non-Metallic Diaphragm Pump, 14.4 GPM, Poly Center, Poly Single Port Manifold, SS Hardware, Poly Seat, Santoprene Ball & Diaphragm

$768.60

BIPN: ARO-PD05P-APS-PAA-B Quantity Interval: 1 / EA - Each

1/2" DIAPHRAGM PUMP, 14.4 GPM MAX, NON METALLIC, POLY CENTER / MANIFOLDS, SS HARDWARE, POLY SEAT, PTFE BALL / DIAPHRAGM (ARO-PD05P-APS-PTT-B)

Compact Series 1/2" Non-Metallic Diaphragm Pump, 14.4 GPM, Poly Center, Poly Single Port Manifold, SS Hardware, Poly Seat, PTFE Ball, PTFE/Santoprene Diaphragm

$979.20

BIPN: ARO-PD05P-APS-PTT-B Quantity Interval: 1 / EA - Each

1” DIAPHRAGM PUMP, 53 GPM MAX, NON-METALLIC, POLY CENTER, POLY MANIFOLDS (SIDE FLANGED), SS HARDWARE, POLY SEAT, SANTOPRENE BALL / DIAPHRAGM (ARO-PD10P-FPS-PAA)

EXP Series 1" Non-Metallic Diaphragm Pump, 53 GPM, Poly Center, A.N.S.I./DIN Side Flanges, Poly Wetted Parts, SS Hardware, Poly Seat, Santoprene Ball & Diaphragm

$1,398.60

BIPN: ARO-PD10P-FPS-PAA Quantity Interval: 1 / EA - Each

1” DIAPHRAGM PUMP, 53 GPM MAX, NON-METALLIC, POLY CENTER, POLY MANIFOLDS (SIDE FLANGED), SS HARDWARE, POLY SEAT, PTFE BALL / DIAPHRAGM (ARO-PD10P-FPS-PTT)

EXP Series 1" Non-Metallic Diaphragm Pump, 53 GPM, Poly Center, A.N.S.I./DIN Side Flanges, Poly Wetted Parts, SS Hardware, Poly Seat, PTFE Ball, PTFE/Santoprene Diaphragm

$1,688.40

BIPN: ARO-PD10P-FPS-PTT Quantity Interval: 1 / EA - Each
