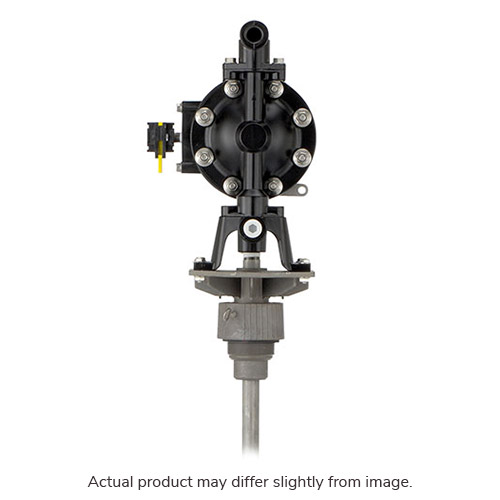

ARO® DAB05-PPAA-2-A

Name: 1/2" DRUM PUMP, 11 GPM, NON-METALLIC, POLY MANIFOLDS, POLY SEAT, SANTOPRENE BALL / DIAPHRAGM (ARO-DAB05-PPAA-2-A)
Brand: ARO®
SKU: ARO-DAB05-PPAA-2-A
Price: 957.09 USD
Availability: InStock

Drum Pump Assembly, 11 GPM, 1:1 Ratio, Poly Housing & Seat, Santoprene® Ball & Diaphragm

$957.09

BIPN:: ARO-DAB05-PPAA-2-A
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

ARO® Drum Pump Package. EXPert Series DAB05. 1/2" Diaphragm Pump, 11 GPM Flow Capacity, 1:1 Ratio, Drum Mount. Polypropylene Pump Housing and Seats, Santoprene® Pump Diaphragm and Balls. Package includes: Pump, Bung Adaptor, Air Safety Shut-Off, Siphon Tube, Weather Seal and Base.ARO® Drum Pump package components contain pre-specified, matching materials of construction for complete fluid compatibility. This package is compatible for use with mild acidic fluids. Please refer to the chemical compatibility guide for the specific material you are pumping.

Pump Type Non-Metallic AODD
Series EXPert Series DAB05
Flow Rate 11 gpm
Maximum Pressure 100 psi
Air Inlet 1/4 - 18 NPT/F
Body Material Polypropylene
Check Seat Material Polypropylene
Diaphragm Material Santoprene®
Dimensions 12-1/32 x 8-3/32 x 50-5/32 in
Discharge Tube Material No outlet accessory
Inlet Size 1/2 in
Maximum Diameter of Solids 3/32 in
Outlet Size 1/2 - 14 NPT/F
Ratio 1:1
Suction Tube Length 55 gal
Suction Tube Material Polypropylene

Basic Package with pump, bung adaptor, air safety shut-off, siphon tube, weather seal and base
11-gpm flow capability
Patented unbalanced air valve design that avoids stall-out, even under low air-inlet pressures
Bolted construction for leak-tight integrity
5-year ARO® warranty
