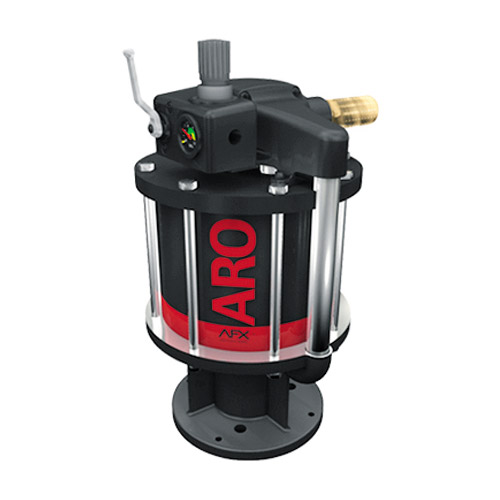

ARO® AF1015J11FF36

ARO® 2-Ball Piston Pump. AFX Series AF1015. 15:1 Ratio, 18.1 GPM, 10" Air Motor, 1350 PSI. The AF1015J11FF36 model is configured with the following options: 400 Series Stainless Steel Lower Pump w/Tungsten Carbide Seat, 15-5 Stainless Steel Plunger w/Hard Chrome and UHMW-PE Upper/Lower Packings.

ARO® 2-ball pumps are designed for the ultimate in versatility with the capability of handling applications from simple transfer to the extrusion of low to medium viscosity materials. Applications include: spray, transfer & supply, extrusion, lubrication and high-pressure cleaning. Material handling abilities include: sheer-sensitive, abrasive and high-solid materials.

• Type 2-Ball Air-Operated
• Series AXF Series AF1015
• Flow Rate 18.1 gpm
• Inlet Size 2 - 11-1/2 NPTF -1 (male)
• Outlet Size 1-1/4 - 11-1/2 NPTF -1 (female)
• Maximum Pressure 1350 psi
• Material 400 Series SS w/Tungsten Carbide Seat
• Dimensions 47.344 in H
• Motor Size 10 in
• Ratio 15:1
• Stroke 7 in
