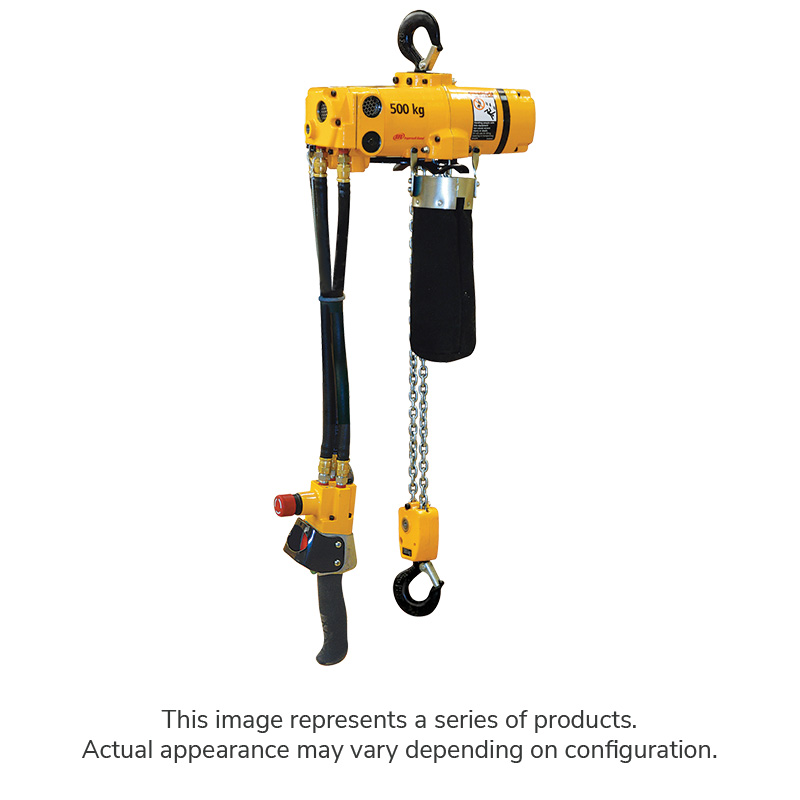

Ingersoll Rand® CL500K-2DA10-C6U

Designed for production applications and loads up to 1100 lbs. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls.

Applications: The Compact Lift Air Chain Hoists (CLK) are designed for industrial, assembly and general utility applications.

• Series CLK Series
• Load Capacity 1/2 ton
• Suspension Type Plain Trolley
• Lifting Height 10 ft
• Lift Speed 15 fpm
• Headroom 15.35 in
• Control Type Pendant
• Chain Falls 2
• Chain Steel Link Chain
• Lower Hook Steel snap hook
• Brake Type Disc
• Air Flow Rate 32 cfm
• Air Pressure 90 psi
• Air Inlet 3/8 in NPT
• Non-Sparking No
• Sound Level 75 dB

• Meets ASME HST-5 Specifications and OSHA requirements
• Rugged, lightweight and compact design
• Disc brake is non-asbestos and spring engaged with air release
• Internal muffler reduces sound levels to a best-in-the-industry 75 dBA
• High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
• Upper and lower limit stops prevent dangerous over-travel of the hook
• 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
• Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.
• Ergonomic pendent handle is rugged and durable. Guard covers both levers and can be used with or without gloves.
