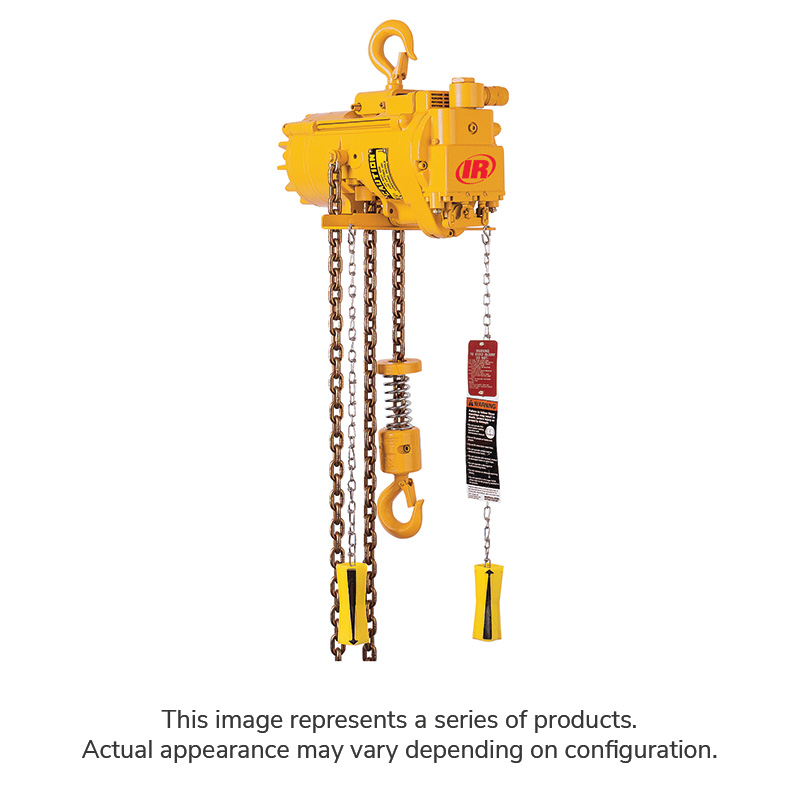

Ingersoll Rand® ML500KS-1DA10-C6

Serving industry for over 25 years, the rugged and reliable MLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations. Spark resistant and slow speed precision spotting models are also available. MLK series come with a wide range of options and accessories.

Applications: The Ingersoll Rand MLK family of hoists is suitable for A5 / H5 severe-duty use in the 0.25 to 1 metric ton range. The MLK Series is designed to be used as a highspeed production hoist and ideal for harsh environments found in steel mills, foundries and electroplating operations.

• Series MLK Series
• Load Capacity 1/2 ton
• Suspension Type Plain Trolley
• Lifting Height 10 ft
• Lift Speed 22 fpm
• Headroom 18 in
• Control Type Pull Chain
• Chain Falls 1
• Chain Steel Link Chain
• Lower Hook Steel snap hook
• Brake Type Disc
• Air Flow Rate 45 cfm
• Air Pressure 90 psi
• Air Inlet 1/2 in NPT
• Non-Sparking No
• Sound Level 85 dB

• Meets ASME HST-5 Specifications and OSHA requirements
• 100 percent duty cycle enables continuous operation
• Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
• All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
• Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
