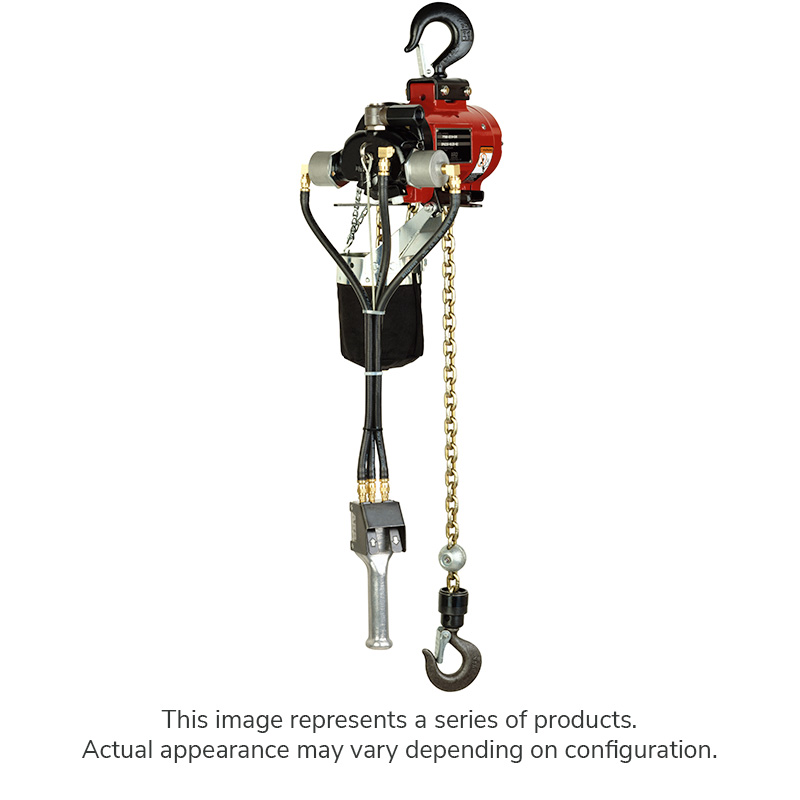

Ingersoll Rand® 7756E-2C15-C11

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Applications: Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

• Series ARO 7700 Series
• Load Capacity 1/2 ton
• Suspension Type Hook
• Lifting Height 15 ft
• Lift Speed 41 fpm
• Headroom 17 in
• Control Type Pendant
• Chain Falls 1
• Chain Zinc-Plated Steel Link Chain
• Lower Hook Steel Snap Hook
• Brake Type Disc
• Air Flow Rate 70 cfm
• Air Pressure 90 psi
• Air Inlet 1/2 in NPT
• Non-Sparking No
• Sound Level 85 dB

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands
