Ingersoll Rand® PS2-1000R-L

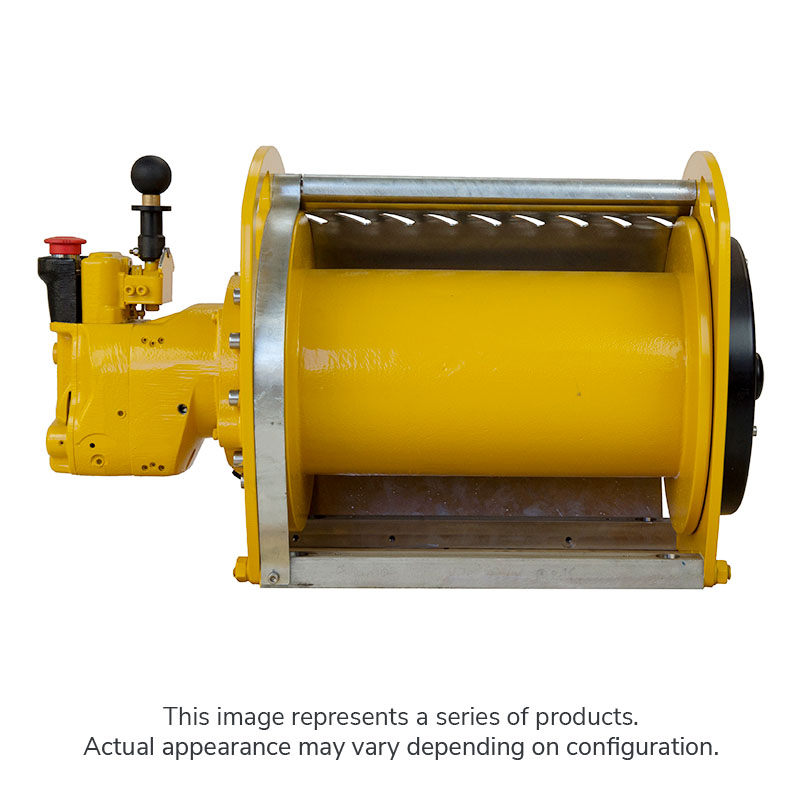

Ingersoll Rand Pullstar winches feature a tough, yet compact design that helps them fit almost anywhere. Their low maintenance, highly reliable gear motors have only two moving parts making them virtually maintenance free- even after being stored or inactive for down times. Pullstar winches are built specifically for pulling operations and come standard with a disengaging clutch. They excel in environments where less rugged winches would fail.

Applications: Lifting operations, ship building, heavy construction, onshore, mining, offshore, marine

Standards/Certifications: ANSI/ASME B30.7, CE FEM Classification 1 Bm, and other 3rd party type approvals

• Type Pulling
• Load Capacity 2200 lb
• Horsepower 3.5 hp
• Air Flow Rate 141 cfm
• Air Pressure 90 psi
• Air Inlet 3/4 in BSP
• Minimum Hose Size 3/4 in
• Brake Type Auto Disc Brake
• Control Type Lever
• Motor Type Air Gear Motor
• Speed Settings Variable Speed
• Pulling Direction Horizontal
• Rope Diameter 1/4 in
• Rope Storage Capacity 292 ft
• Housing Material Steel
• Sound Level 92 dB

• Rugged cast iron and steel construction delivers long-life.
• Easily configured to meet worldwide standards including ANSI/ASME B30.7 and CE FEM Classification 1 Bm.
• Reliable gear type air motor designed for the harshest environments.
• Standard internal muffler reduces noise levels.
• Lift-to-Shift variable speed lever provides precise control and built-in safety.
• Note: There are other configurations and modifications that Ingersoll Rand can accommodate outside of the standard unit. Please contact us for more information.
