MMM 18243

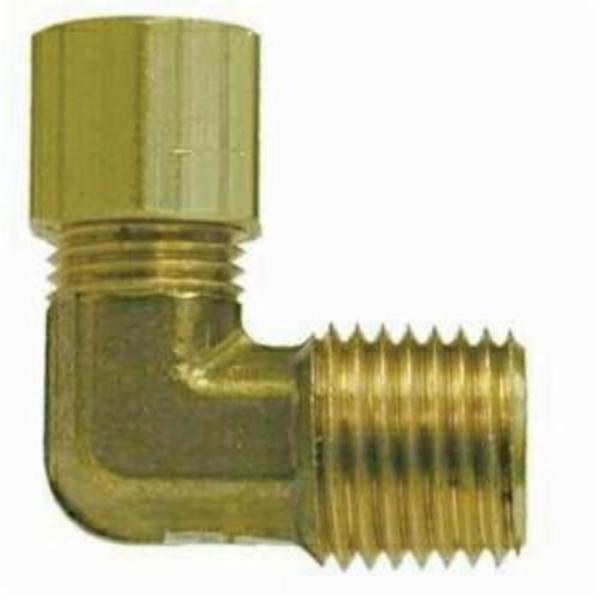

MMM Tube-to-Pipe Elbow, Elbow, 3/4 x 1/2 in Nominal, Compression x MNPTF, 100 psi, -65 to 250 deg F, CA377 Brass, Forged

• Fitting/Connector Type Elbow
• Nominal Size 3/4 x 1/2 in
• End Style Compression x MNPTF
• Pressure Rating 100 psi
• Temperature Rating -65 to 250 deg F
• Material CA377 Brass
• Method of Manufacture Forged

• Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
• Fair resistance use long nut when greater vibration resistance is needed
• /-0.02 tolerance on all dimensions
• Not recommended for steel tubing
• 0.94 in body size
