LEGEND 107-175

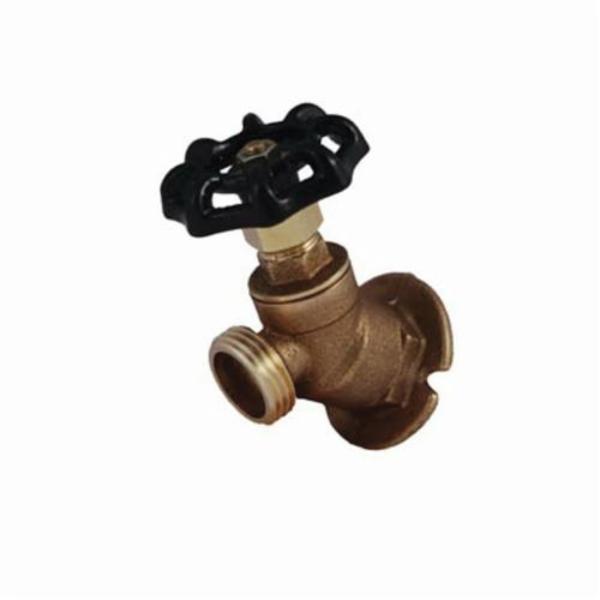

LEGEND Sillcock, Low Pressure, Series: T-541, 3/4 in Nominal, FNPT x Male Garden Hose Thread, 125 psi, Full Port, Media: Water, Brass Body, Cast Brass Trim, Handwheel Actuator, 3.98 in L Open x 3.71 in L Closed x 2.37 in W, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

• Type Low Pressure
• Series T-541
• Nominal Size 3/4 in
• End Style FNPT x Male Garden Hose Thread
• Pressure Rating 125 psi
• Port Type Full
• Media Water
• Body Material Brass
• Trim Material Cast Brass
• Actuator Type Handwheel
• Dimensions 3.98 in L Open x 3.71 in L Closed x 2.37 in W

• Full-pattern body, stem and handwheel construction
• Electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
• Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
• Cast iron handle cadmium plated steel, brass screw, nut handle fastened, NBR (Buna-N) rubber stem packing and seat washer, brass packing nut, stainless steel seat retaining screw
• Cast brass body
