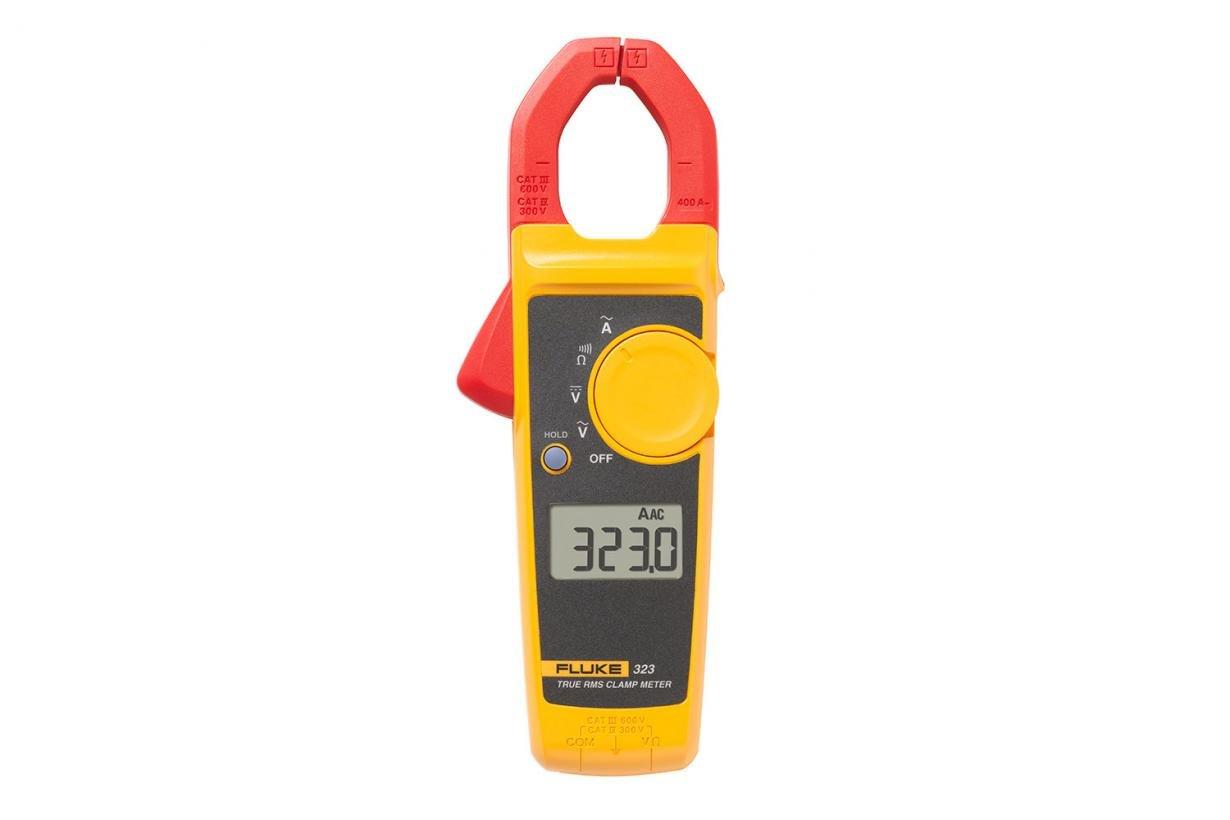

Fluke® 323

Fluke® Clamp Meter, 400 A, 600 VAC/VDC Electrical Rating, 4000 Ohm Resistance, 30 mm Jaw, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC Voltage Accuracy, Safety Rating: CAT III 600 VAC, CAT IV 300 VAC, -10 to 50 deg C Operating, 8.15 in L x 2.95 in W x 1.34 in H Dimensions, Hard Plastic

True-RMS measurements and optimized ergonomics make the 320 series clamp meters the best general troubleshooting tools for commercial and residential electricians. The Fluke® 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.

Includes: Test Leads, Soft Case and User's Manual

Application: For current measurements in tight cable compartments and overall troubleshooting by commercial and residential electricians

• AC Current Accuracy 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz
• Dimensions 8.15 in L x 2.95 in W x 1.34 in H
• Display Type Backlit
• Electrical Ratings 400 A, 600 VAC/VDC
• Jaw Capacity 30 mm
• Material Hard Plastic
• Operating Temperature -10 to 50 deg C
• Resistance 4000 Ohm
• Safety Rating CAT III 600 VAC, CAT IV 300 VAC
• Voltage Accuracy 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC

• True-RMS AC voltage and current for accurate measurements on non-linear signals
• Slim, ergonomic design, hold button
• Fluke® rugged, reliable, precise
• Resistance measurement up to 4 kOhm with continuity detection
• Resistance 400 Ohm/4000 Ohm with accuracy of (1% +/- 5 digits)
• <=70 Ohm continuity
