Leviton® 515CR

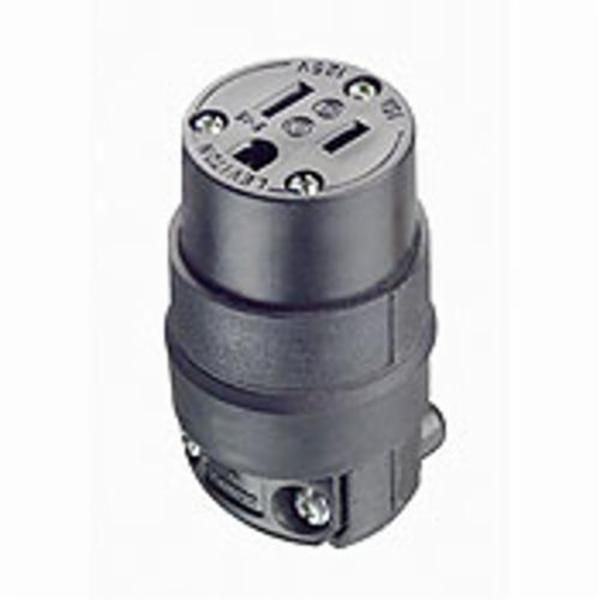

Leviton® 515CR Cable Mount Grounding Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
- BIPN:
- LEV-515CR
- UPC:
- 78477841549
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Leviton® Straight Blade Connector, Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, EPTR Rubber, Black, 1.55 in Dia x 2.56 in H
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
- Type Cable Mount Grounding
- Voltage Rating 125 VAC
- Amperage Rating 15 A
- Number Of Poles 2
- Number Of Wires 3
- NEMA Rating NEMA 5-15R
- Grade Commercial
- Cord Diameter 0.245 to 0.7 in
- Temperature Rating -40 to 60 deg C
- Terminal Type Screw
- Material EPTR Rubber
- Color Black
- Dimensions 1.55 in Dia x 2.56 in H
-
- Triple-drive head screws standard, philips, robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with no 18-3 through no 12-3 cords (0.245 to 0.655 in)
- Motor base inlet accepts #10 maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Designed to stand up to rough use
- No internal metal parts exposed
- Elastomeric husk provides added protection against dirt and moisture entry into the back wire port
- Designed to operate in the widest possible temperature range
