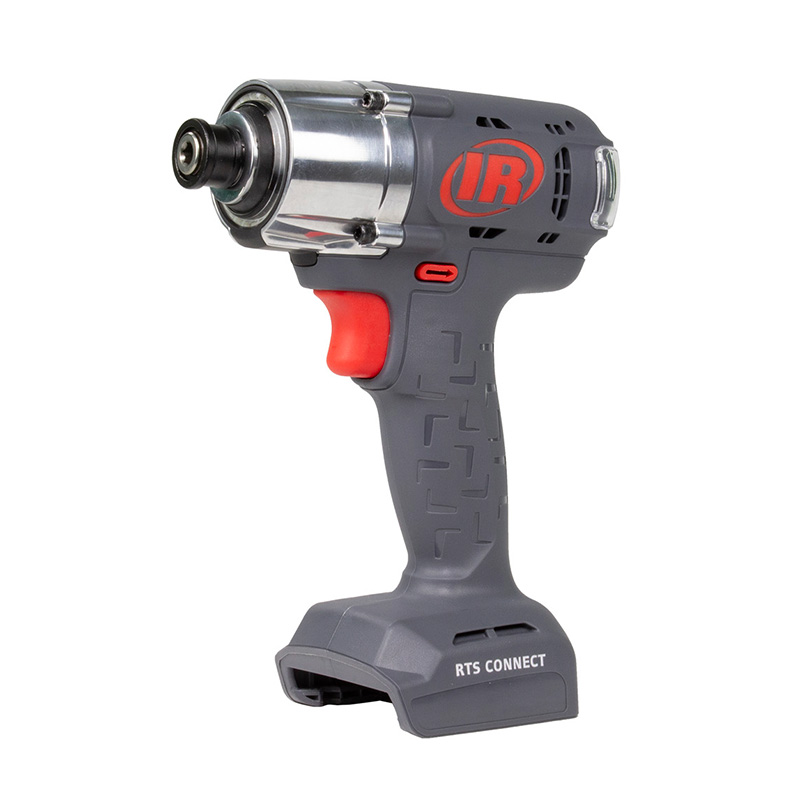

Ingersoll Rand® RTS025PQ4

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Also Available in the RTS025PQ4-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

• Bare Tool/Kit Bare Tool
• Series RTS Series
• Drive Type Hex
• Drive Size 1/4 in
• spec 18 ft-lb
• spec 25 Nm
• Pulses per Minute 3800 ppm
• Speed 2700 rpm
• Communication Type Dual Band Wi-Fi, 802.15.4 Wireless, Bluetooth, USB-C
• Programmable Configurations 8
• Display Yes
• Voltage Rating 20 V
• Handle Style Pistol
• Throttle Style Trigger
• Retainer Type Quick Change
• Reversible Yes
• Anvil Length Standard

• An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator.
• The multi-color 360 deg status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status.
• 3 programming methods provide faster and smarter configuration.
• Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller
• Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line.
• Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations.
• 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• Proprietary torque control algorithm that delivers consistent, repeatable fastening. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHT
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
