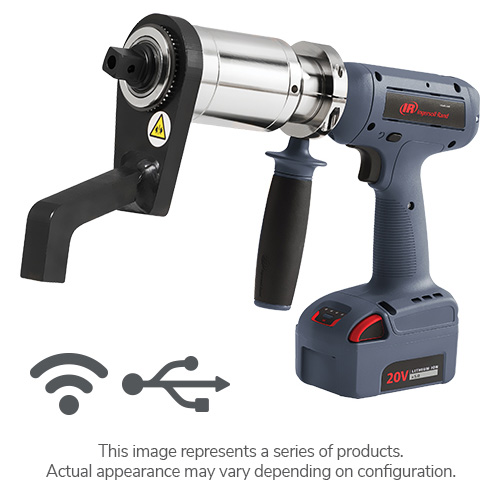

Ingersoll Rand® QXX2PT1350VNPS16

QXM Series™ 20V Cordless Torque Multiplier

The innovative QXM Series Cordless Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.

• Bare Tool/Kit Bare Tool
• Series QXM Series
• Drive Type Square
• Drive Size 1 in
• Torque Rating 996 ft-lb
• Torque Rating (Nm) 1350 Nm
• Speed 5 rpm
• Communication Type 802.15.4 Wireless, USB
• Programmable Configurations 8
• Display Yes
• Voltage Rating 20 V
• Handle Style Pistol
• Throttle Style Trigger

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback - displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360 deg adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: 1) Wirelessly Through INSIGHTqcx Controller. 2) USB with INSIGHTqcx Controller, Insight Connect Andriod App and ICS Software. 3) On Board Tool Display/ Key.
• Offer option for Insight Connect Android APP
