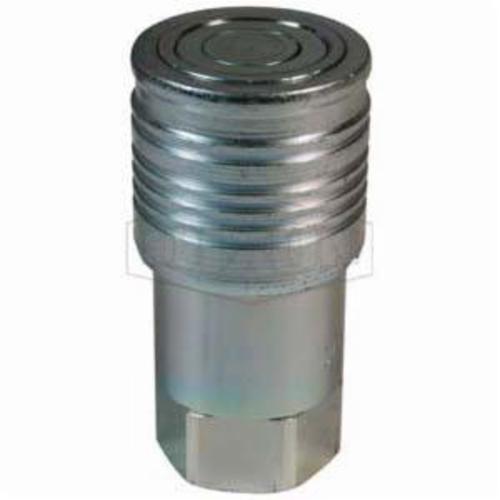

Dixon® 2HTF2

Dixon® Flush Face Coupling, Series: HT Series, 1/4-18 Nominal, FNPT, 7/8 in Hex, 1.98 in Length, 5000 psi, Steel, 1.11 in OD

• Series HT Series
• Nominal Size 1/4-18
• End Style FNPT
• Hex Size 7/8 in
• Length 1.98 in
• Pressure Rating 5000 psi
• Material Steel
• Dimensions 1.11 in OD

• Machined components are manufactured using solid bar stock
• Easily rebuildable
• Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
• DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
• High flow performance, compact profile
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Steel componentry is plated using ROHS compliant trivalent chrome
• Steel coupler sleeves are hardened to resist deformation and maximize service life
• Couplers have polyurethane valve stem O-Ring, with a temperature range of -65 to 212 deg F
• Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 to +250 deg F
• PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
• 20000 psi burst pressure
• Interchangeable to ISO16028
• Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
• Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
• Do not use in connection with drinking water
• Wash hands after handling
