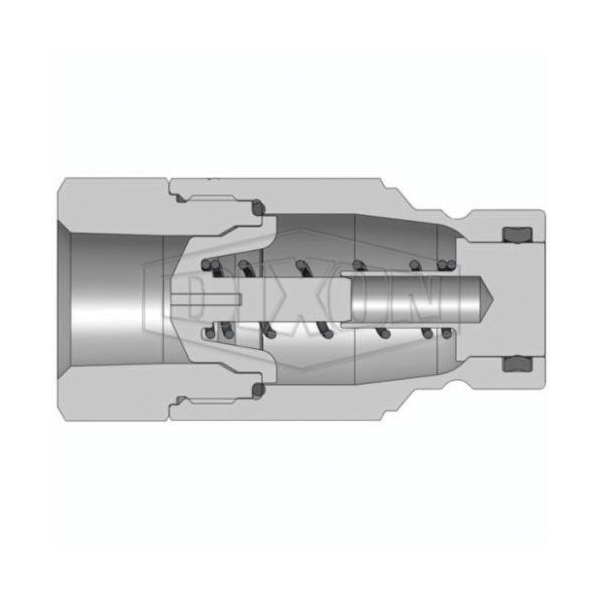

Dixon® HT2F2

Dixon® Flush Face Female Plug, Series: HT Series, 1/4-18 Nominal, FNPT, 7/8 in Hex, 1.89 in Length, 5000 psi, Steel, Domestic

• Series HT Series
• Nominal Size 1/4-18
• End Style FNPT
• Hex Size 7/8 in
• Length 1.89 in
• Pressure Rating 5000 psi
• Material Steel
• Domestic/Import Domestic

• Machined components are manufactured using solid bar stock
• Easily rebuildable
• High flow performance, compact profile
• High-strength laser-cut valve guide maximizes valve stability while minimizing flow restriction
• Improved sealing system incorporates a high performance molded polyurethane or o-ring energized PTFE valve seal
• Rated pressure for connected steel coupler and steel plug: 5000 psi maximum working and 20000 psi burst
• Steel nipples are hardened to provide resistance to brinelling during impulse service
• Has molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
• Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
• PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
• 20000 psi burst pressure
• 5000 psi at 70 deg F pressure
• Interchangeable to ISO16028
• Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
• Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
• Do not use in connection with drinking water
• Wash hands after handling
• Limited Warranty
