Enerpac® SCR106TB

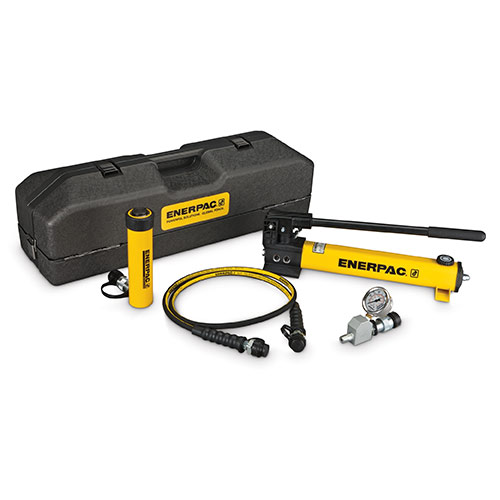

Enerpac® SCR106TB Hydraulic Cylinder and Hand Pump Set. 10 Ton Capacity, 6.13 in Stroke, 10000 psi Max Pressure. Includes a single-acting cylinder (RC106), two-speed lightweight hand pump (P392), gauge adaptor assembly (GA45GC), and 6 ft. rubber hose with couplers (HC9206C). Complete and ready-to-use hydraulic system with easy to carry sturdy toolbox.

RC106 General Purpose Cylinder

• Unique GR2 Bearing Design, reduces wear, extending life
• Base mounting holes enable easy fixturing
• Designed for use in all positions
• High strength alloy steel for durability
• Redesigned cylinder thread protector for ease of use
• Heavy-duty, pretensioned spring improves retraction speed
• Baked enamel finish for increased corrosion resistance
• CR-400 coupler and dust cap included
• Plunger wiper reduces contamination, extending

P392 Hand Pump

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection

• Type General Purpose Single-Acting, Spring Return
• Series RC
• Capacity 11.2 ton
• Bore Size 1.69 in
• Stroke Length 6.13 in
• Retract 9.75 in
• Mounting Type Base
• Port Location Bottom
• Pressure Rating 10000 psi
• Housing Material Steel
• Finish Baked Enamel
• Dimensions 2.25 in OD
