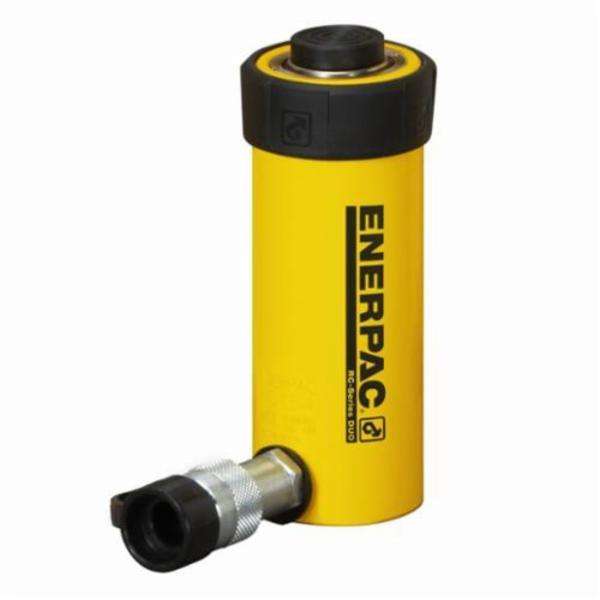

Enerpac® RC-101

Enerpac® RC-101 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 1 in L Stroke, 3.53 in H Retract, 1-1/2 in Dia Rod, 700 bar

$584.00

BIPN:: ENE-RC-101
UPC:: 662005300747
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 10 ton, 1.69 in Dia Bore, 1 in Stroke, 3.53 in H Retract, Base Mount, 1-1/2 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2-1/4 in OD

Type DUO General Purpose Single Acting
Series RC
Capacity 10 ton
Bore Size 1.69 in Dia
Stroke Length 1 in
Retract 3.53 in H
Mounting Type Base
Rod Diameter 1-1/2 in
Pressure Rating 700 bar
Housing Material Alloy Steel
Finish Baked Enamel
Dimensions 2-1/4 in OD

Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

Instruction/Installation Manual

Specification Sheet

CYLINDER LOW HEIGHT 10 TON 1.5" STROKE (ENE-RCS-101)

Enerpac® Flat-Jac® RCS-101 Low Height Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 1-1/2 in L Stroke, 3.47 in H Retract, 1-1/2 in Dia Rod, 10000 psi

$714.00

BIPN: ENE-RCS-101 Quantity Interval: 1 / EA - Each

CYLINDER 10 TON S/A 8" STROKE (ENE-RC-108)

Enerpac® RC-108 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 8 in L Stroke, 11-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

$838.00

BIPN: ENE-RC-108 Quantity Interval: 1 / EA - Each

CYLINDER 5 TON S/A 9" STROKE (ENE-RC-59)

DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 9.13 in L Stroke, 12-3/4 in H Retract, 1 in Dia Rod, 700 bar

$814.00

BIPN: ENE-RC-59 Quantity Interval: 1 / EA - Each

CYLINDER 5 TON (ENE-RC-50)

Enerpac® RC-50 DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 0.63 in L Stroke, 1.63 in H Retract, 1 in Dia Rod, 700 bar

$471.00

BIPN: ENE-RC-50 Quantity Interval: 1 / EA - Each

CYLINDER 10 TON (ENE-RC-106)

Enerpac® RC-106 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 6.13 in L Stroke, 9-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

$724.00

BIPN: ENE-RC-106 Quantity Interval: 1 / EA - Each

CYLINDER 25 TON 14" STROKE (ENE-RC-2514)

General Purpose Hydraulic Cylinder, Single-Acting / Spring Return, 25.8 ton Capacity, 14.25 in Stroke

$2,187.00

BIPN: ENE-RC-2514 Quantity Interval: 1 / EA - Each

CYLINDER 25 TON 4" STROKE (ENE-RC-254)

Enerpac® RC-254 DUO General Purpose Single Acting Hydraulic Cylinder, 25 ton Capacity, 2.56 in Dia Bore, 4 in L Stroke, 8-1/2 in H Retract, 2.56 in Dia Rod, 700 bar

$1,035.00

BIPN: ENE-RC-254 Quantity Interval: 1 / EA - Each

CYLINDER 5 TON 3" STROKE (ENE-RC-53)

Enerpac® RC-53 DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 3 in L Stroke, 6-1/2 in H Retract, 1 in Dia Rod, 700 bar

$529.00

BIPN: ENE-RC-53 Quantity Interval: 1 / EA - Each

CYLINDER 10 TON 4" STROKE (ENE-RC-104)

Enerpac® RC-104 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 4.13 in L Stroke, 6-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

$657.00

BIPN: ENE-RC-104 Quantity Interval: 1 / EA - Each
