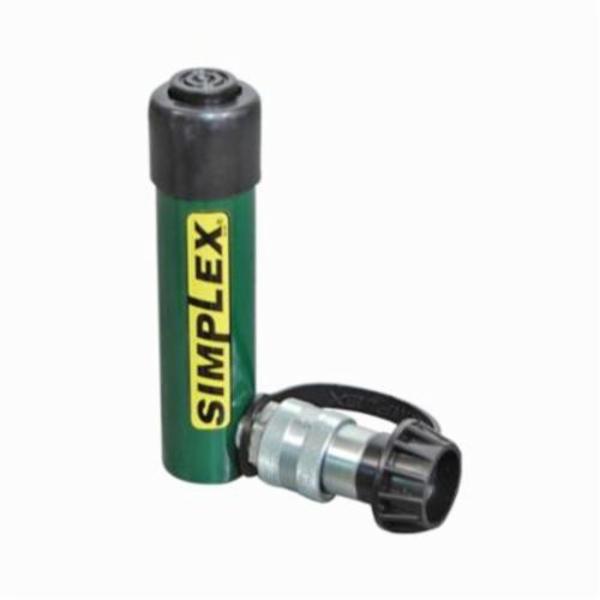

Simplex® R252

Name: CYLINDER 25 TON S/A 2" STROKE (SMP-R252)
Brand: Simplex®
SKU: SMP-R252
Price: 695 USD
Availability: InStock

Simplex® R252 R Series Single Acting Spring Return Hydraulic Cylinder, 25 ton Capacity, 2.56 in Dia Bore, 2 in L Stroke, 6-1/4 in H Retract, 2-1/4 in Dia Rod, 10000 psi

$695.00

BIPN:: SMP-R252
UPC:: 812761020810
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Simplex® Hydraulic Cylinder, Single Acting Spring Return, Series: R, 25 ton, 2.56 in Dia Bore, 2 in Stroke, 6-1/4 in H Retract, Base Mount, 2-1/4 in Rod Dia, 10000 psi, Steel Housing, 3.5 in OD

Type Single Acting Spring Return
Series R Series
Capacity 25 ton
Bore Size 2.56 in Dia
Stroke Length 2 in
Retract 6-1/4 in H
Mounting Type Base
Rod Diameter 2-1/4 in
Pressure Rating 10000 psi
Housing Material Steel
Dimensions 3.5 in OD

Stop ring for piston blow out protection
Plated piston to resist scoring and corrosion
Rod wiper protects inner cylinder from dirt
Collar and piston threads for easy fixturing

Catalog

Instruction/Installation Manual

Warranty Information
