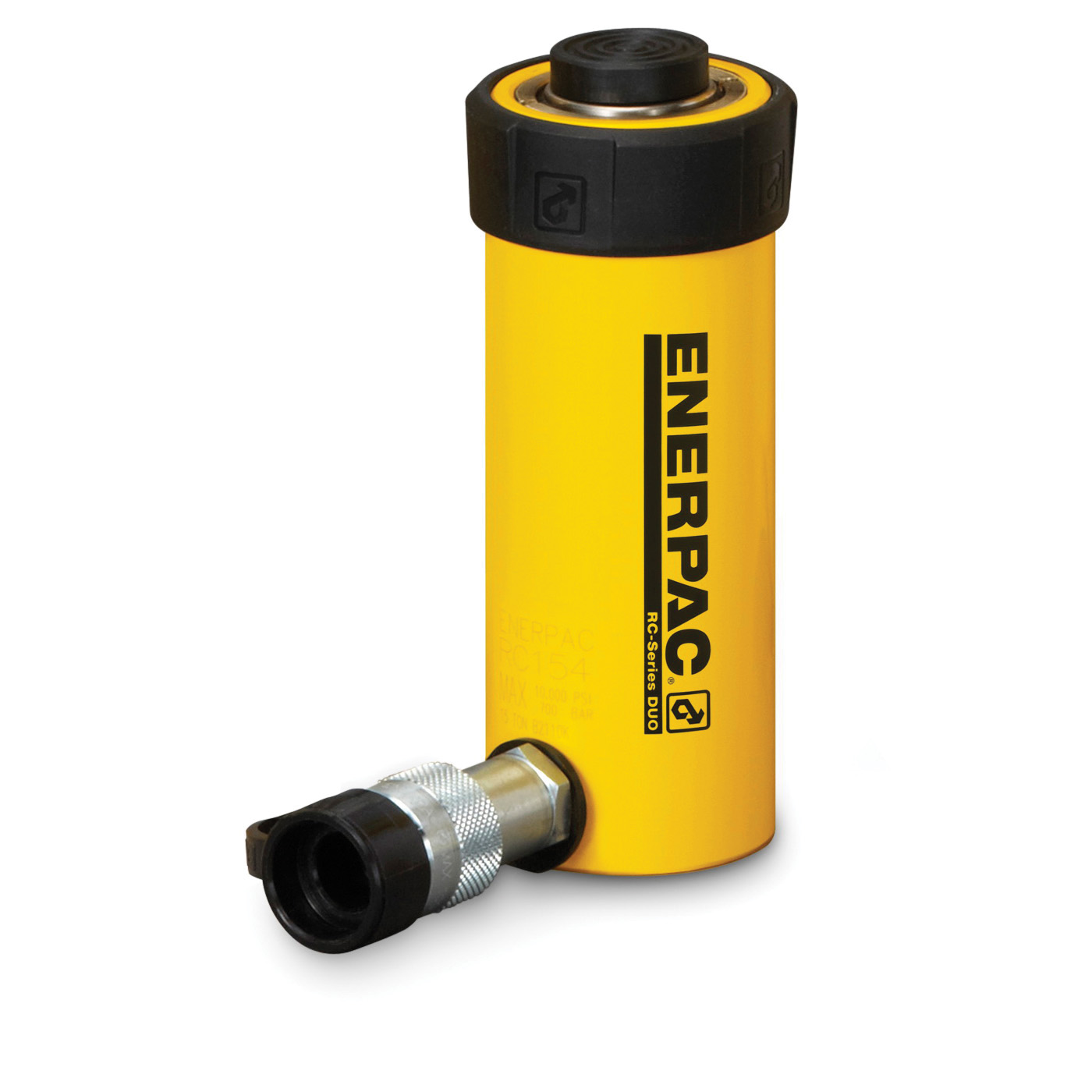

Enerpac® RC-59

Enerpac® Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 5 ton, 1.13 in Dia Bore, 9.13 in Stroke, 12-3/4 in H Retract, Base Mount, 1 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 1-1/2 in OD

• Type DUO General Purpose Single Acting
• Series RC
• Capacity 5 ton
• Bore Size 1.13 in Dia
• Stroke Length 9.13 in
• Retract 12-3/4 in H
• Mounting Type Base
• Rod Diameter 1 in
• Pressure Rating 700 bar
• Housing Material Alloy Steel
• Finish Baked Enamel
• Dimensions 1-1/2 in OD

• Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
• Unique GR2 bearing design, reduces wear, extending life
• Collar threads, plunger threads and base mounting holes enable easy fixturing
• Designed for use in all positions
• High strength alloy steel for durability
• Redesigned cylinder thread protector for ease of use
• Heavy duty, pretensioned spring improves retraction speed
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination, extending cylinder life
