Enerpac® SRS300TB

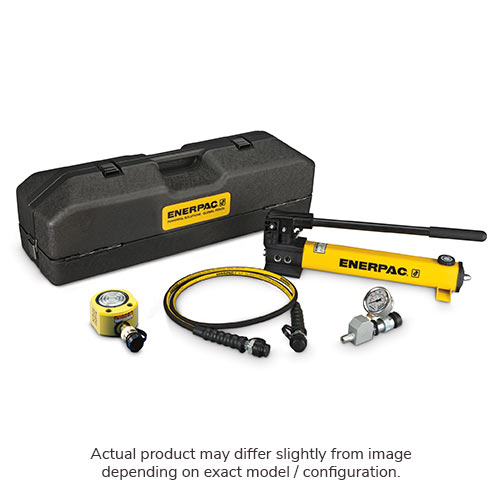

Enerpac® SRS300TB Hydraulic Flat Jack Cylinder and Hand Pump Set. Low Height, 30 Ton Capacity, .50 inch Stroke, 10000 psi Max Pressure. Includes a single-acting cylinder (RSM300), two-speed lightweight hand pump (P392), gauge adaptor assembly (GA45GC), and 6 ft. rubber hose with couplers (HC9206C). Complete and ready-to-use hydraulic system with easy to carry sturdy toolbox.

RSM300 Low Height Cylinder

• Compact, flat design for use where other cylinders will not fit
• Mounting holes permit easy fixturing
• Baked enamel finish for increased corrosion resistance
• CR-400 coupler and dust cap included
• Hard chrome plated high-quality steel plungers
• Grooved plunger ends require no saddle
• Single-acting spring return

P392 Hand Pump

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection

• Type Low Height Single-Acting, Spring Return
• Series RSM
• Capacity 32.4 ton
• Bore Size 2.88 in
• Stroke Length 0.50 in
• Retract 2.31 in
• Mounting Type Base
• Port Location Bottom
• Pressure Rating 10000 psi
• Housing Material Steel
• Finish Baked Enamel
• Dimensions 4.63 x 3.75 in OD
