Enerpac® SCL302TB

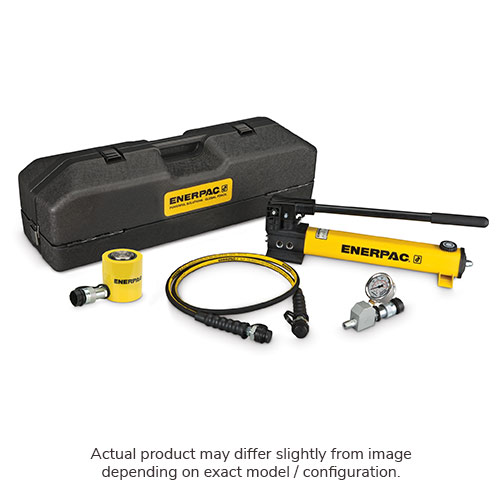

Enerpac® SCL302TB Low Height Hydraulic Cylinder and Hand Pump Set. 30 Ton Capacity, 2.44 inch Stroke, 10000 psi Max Pressure. Includes a single-acting cylinder (RCS302), two-speed lightweight hand pump (P392), gauge adaptor assembly (GA45GC), and 6 ft. rubber hose with couplers (HC9206C). Complete and ready-to-use hydraulic system with easy to carry sturdy toolbox.

RCS302 Low Height Cylinder

• Lightweight, low profile design for use in confined spaces
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contamination, extending cylinder life
• CR-400 coupler and dust cap included
• Grooved plunger end with threaded holes for mounting tilt saddles
• Plated steel plungers
• Single-acting spring return

P392 Hand Pump

• Lightweight and compact design
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
• Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
• Lower handle effort to minimize operator fatigue
• Handle lock and lightweight construction for easy carrying
• Large oil capacities to power a wide range of cylinders or tools
• Non-conductive fiberglass handle for operator safety
• Internal pressure relief valve for overload protection

• Type Low Height Single-Acting, Spring Return
• Series RCS
• Capacity 32.4 ton
• Bore Size 2.88 in
• Stroke Length 2.44 in
• Retract 4.63 in
• Mounting Type Base
• Port Location Bottom
• Pressure Rating 10000 psi
• Housing Material Steel
• Finish Baked Enamel
• Dimensions 4 in OD
