Simplex® RLS302

Name: CYLINDER LOW PROFILE 30 TON 2.4" STROKE SPRING RETURN (SMP-RLS302)
Brand: Simplex®
SKU: SMP-RLS302
Price: 755 USD
Availability: InStock

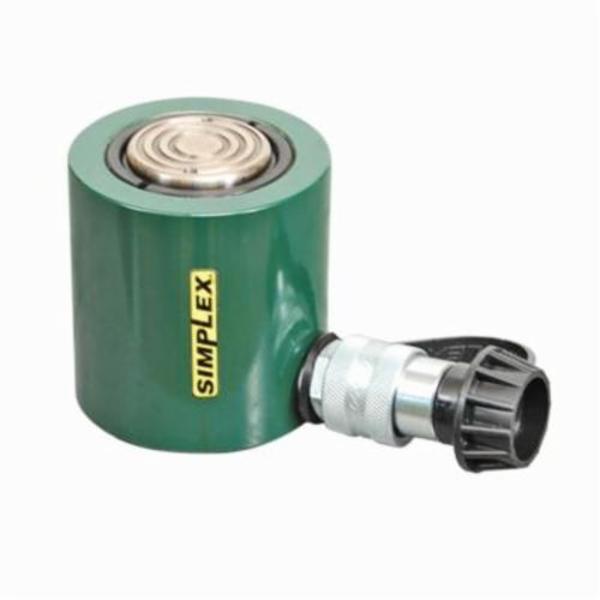

Simplex® RLS302 Low Profile Single Acting Spring Return Hydraulic Cylinder, 30 ton Capacity, 2.87 in Dia Bore, 2.44 in L Stroke, 4.63 in H Retract, 2.62 in Dia Rod, 10000 psi

$755.00

BIPN:: SMP-RLS302
UPC:: 812761020902
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Simplex® Hydraulic Cylinder, Low Profile Single Acting Spring Return, Series: RLS, 30 ton, 2.87 in Dia Bore, 2.44 in Stroke, 4.63 in H Retract, 2.62 in Rod Dia, 10000 psi, Steel Housing, 4 in OD

Type Low Profile Single Acting Spring Return
Series RLS
Capacity 30 ton
Bore Size 2.87 in Dia
Stroke Length 2.44 in
Retract 4.63 in H
Rod Diameter 2.62 in
Pressure Rating 10000 psi
Housing Material Steel
Dimensions 4 in OD

HD internal spring for retract assistance
Heat treated hardened load cap is standard
Stop ring for piston blow out protection
Plated piston to resist scoring and corrosion
High flow couplers are plated to resist corrosion
Rod wiper protects inner cylinder from dirt
