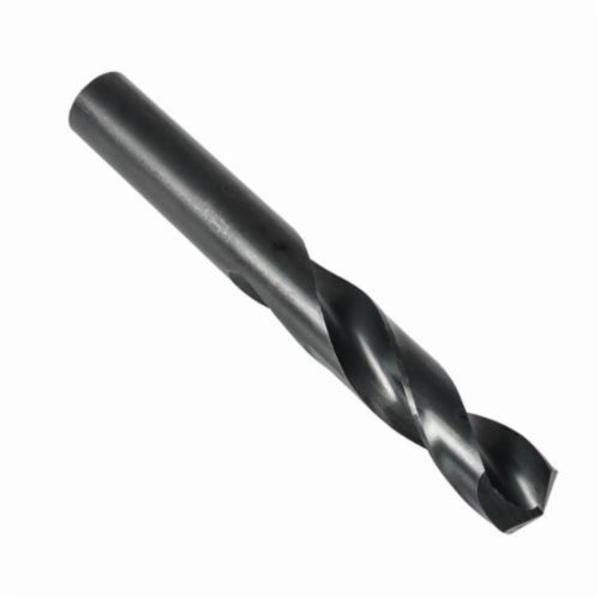

Precision Twist Drill 40813
R40C Heavy Duty Screw Machine Drill Bit, 13/64" Drill, 0.2031" Dia x 2-1/4" OAL, 13/64" Straight Shank, HSS
- BIPN:
- PTD-040813
- UPC:
- 86071408136
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: R40C, Imperial, 13/64 in Drill Size - Fraction, 0.2031 in Drill Size - Decimal Inch, 2-1/4 in Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/16 in Flute Length, 13/64 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
-
- Type Heavy Duty
- Series R40C
- Drill Diameter Measurement System Imperial
- Drill Size - Fraction 13/64 in
- Drill Size - Decimal Inch 0.2031 in
- Overall Length 2-1/4 in
- Cutting Depth 2.5XD
- Number of Flutes 2
- Flute Type Spiral
- Flute Length 1-3/16 in
- Shank Size 13/64 in
- Shank Type Straight
- Point Angle 135 deg
- Point Type Self-Centering/Split
- Cutting Direction Right Hand
- Cutting Edge Material HSS
- Material HSS
- Finish Steam Tempered
- Color Dark Gray
- Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
-
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
