Barmesa® SOX2-12.5-2

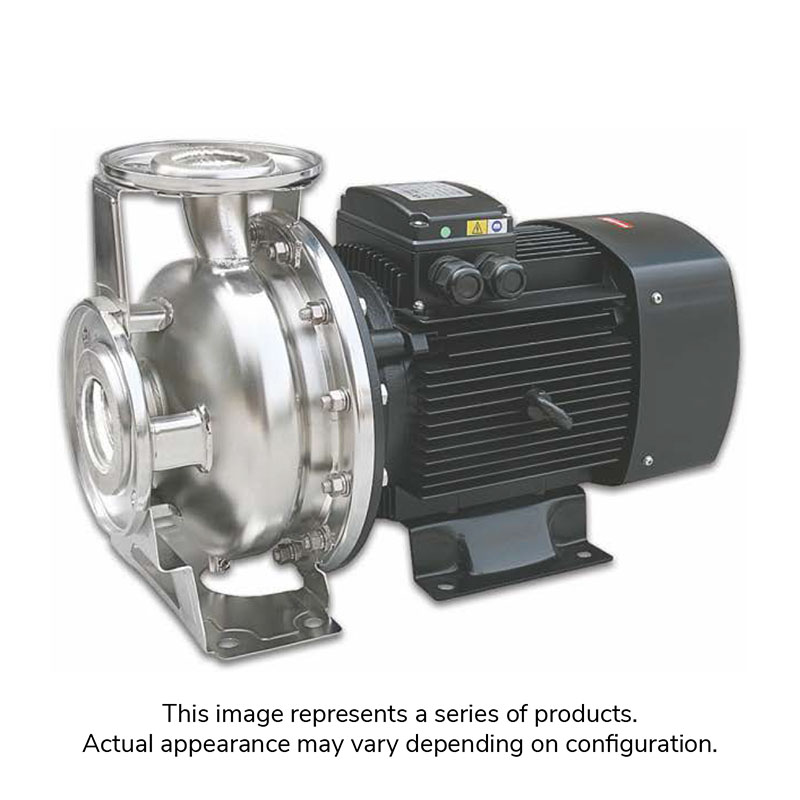

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 12.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-12.5-2-@)
Brand: Barmesa®
SKU: BRM-SOX2-12.5-2
Price: 5394 USD
Availability: InStock

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 12.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$5,394.00

BIPN:: BRM-SOX2-12.5-2
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series SOX
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 2 in Flange
Outlet Size 2 in Flange
Liquid Temperature Rating 248 deg F (max)
Pressure Rating 145 psi (max)
Pump Casing Material 304 Stainless Steel
Impeller Type Closed
Impeller Material 304 Stainless Steel
Seal Type Single Mechanical
Seal Material Silicon-Carbide, Carbon, EPDM
Hardware Material 304 Stainless Steel
Horsepower 12.5 hp @ 3450 rpm
Voltage Rating 230/460V - 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 23 in L x 12 in W x 14 in H
Weight 143 lb

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 12.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-1/2-12.5-2-@)

2-1/2" Flange Stainless Steel Centrifugal Pump, 3" Suction, 12.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$5,611.00

BIPN: BRM-SOX2-1/2-12.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 7.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-7.5-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 7.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,369.00

BIPN: BRM-SOX2-7.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 20 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-20-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 20 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$7,632.00

BIPN: BRM-SOX2-20-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 15 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-15-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 15 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$7,105.00

BIPN: BRM-SOX2-15-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 10 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-10-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 10 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,604.00

BIPN: BRM-SOX2-10-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 25 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-25-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 25 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$8,310.00

BIPN: BRM-SOX2-25-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-5.5-2-@)

2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 5.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$3,215.00

BIPN: BRM-SOX2-5.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 7.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-1/2-7.5-2-@)

2-1/2" Flange Stainless Steel Centrifugal Pump, 3" Suction, 7.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,396.00

BIPN: BRM-SOX2-1/2-7.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 40 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX2-1/2-40-2-@)

2-1/2" Flange Stainless Steel Centrifugal Pump, 3" Suction, 40 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$12,456.00

BIPN: BRM-SOX2-1/2-40-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
