Barmesa® SOX1¼-3-2

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 3 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-3-2-@)
Brand: Barmesa®
SKU: BRM-SOX1-1/4-3-2
Price: 1719 USD
Availability: InStock

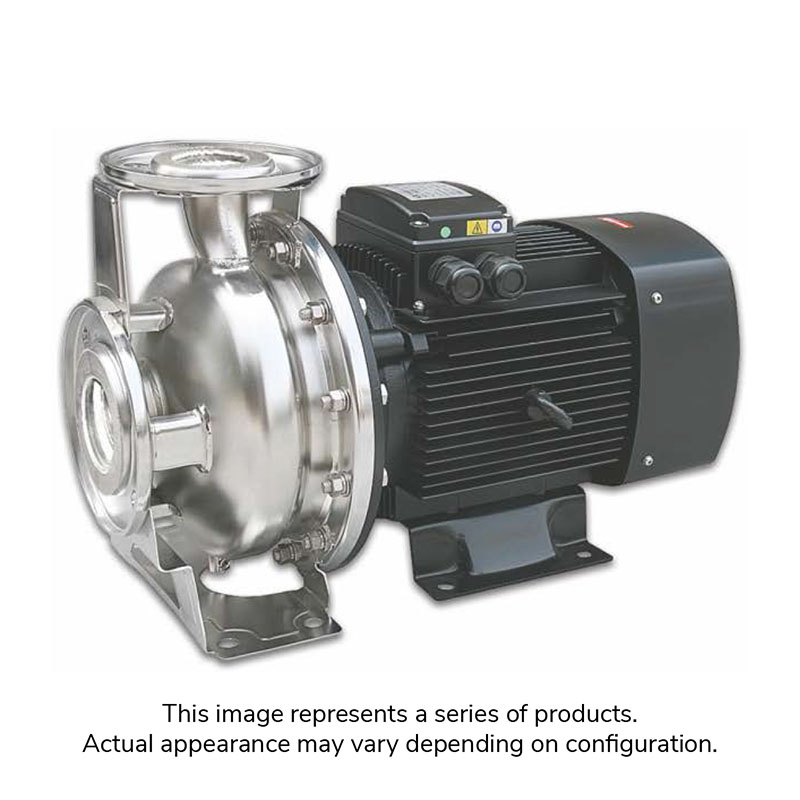

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 3 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$1,719.00

BIPN:: BRM-SOX1-1/4-3-2
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series SOX
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 2 in Flange
Outlet Size 1-1/4 in Flange
Liquid Temperature Rating 248 deg F (max)
Pressure Rating 145 psi (max)
Pump Casing Material 304 Stainless Steel
Impeller Type Closed
Impeller Material 304 Stainless Steel
Seal Type Single Mechanical
Seal Material Silicon-Carbide, Carbon, EPDM
Hardware Material 304 Stainless Steel
Horsepower 3 hp @ 3450 rpm
Voltage Rating 230/460V - 3P - 60 Hz
Motor Enclosure Type TEFC Premium Efficiency (IE3)
Dimensions 16 in L x 9 in W x 11 in H
Weight 62 lb

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 2 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-2-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 2 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$1,510.00

BIPN: BRM-SOX1-1/4-2-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 4 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-4-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 4 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$2,121.00

BIPN: BRM-SOX1-1/4-4-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-5.5-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 5.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$3,182.00

BIPN: BRM-SOX1-1/4-5.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-1.5-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$1,461.00

BIPN: BRM-SOX1-1/4-1.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 7.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-7.5-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 7.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,209.00

BIPN: BRM-SOX1-1/4-7.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 10 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/2-10-2-@)

1-1/2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 10 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,541.00

BIPN: BRM-SOX1-1/2-10-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 7.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/2-7.5-2-@)

1-1/2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 7.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$4,419.00

BIPN: BRM-SOX1-1/2-7.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 15 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/2-15-2-@)

1-1/2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 15 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$6,954.00

BIPN: BRM-SOX1-1/2-15-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 5.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/2-5.5-2-@)

1-1/2" Flange Stainless Steel Centrifugal Pump, 2" Suction, 5.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$3,134.00

BIPN: BRM-SOX1-1/2-5.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
