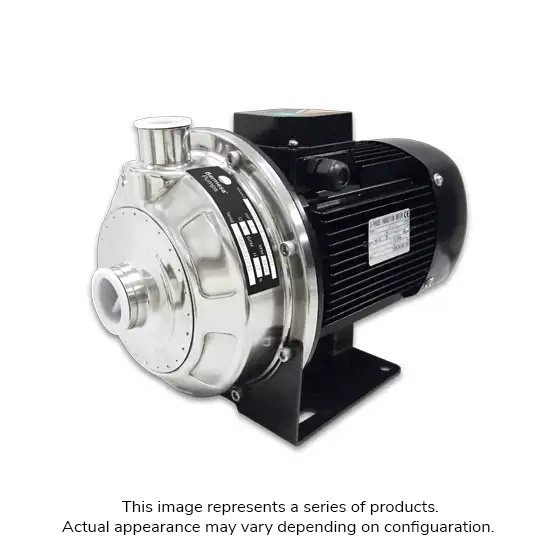

Barmesa® CD70-1.5-2 VS

Name: END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD70-1.5-2 VS-@)
Brand: Barmesa®
SKU: BRM-CD70-1.5-2 VS
Price: 1100.37 USD
Availability: InStock

1" NPT Stainless Steel Centrifugal Pump w/Viton Seal, 1-1/4" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,100.37

BIPN:: BRM-CD70-1.5-2 VS
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Type Heavy-Duty Industrial
Series CD
Motor Type Electric Motor
Motor Connection Type Close-Coupled
Inlet Size 1-1/4 in FNPT
Outlet Size 1 in FNPT
Flow Rate 36 gpm @ 49 ft
Liquid Temperature Rating 158 deg F (max)
Pressure Rating 125 psi (max)
Pump Casing Material 304 Stainless Steel
Impeller Type Closed
Impeller Material 304 Stainless Steel
Seal Type Single Mechanical
Seal Material Carbon/Silicon-Carbide, Viton
Hardware Material 304 Stainless Steel
Horsepower 1.5 hp @ 3450 rpm
Voltage Rating 230/460V - 3P - 60 Hz
Motor Enclosure Type TEFC High Efficiency (IE2)
Dimensions 15 in L x 9 in W x 9 in H
Weight 31 lb

Data Sheet

Owner's Manual

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD70-1.5-2-@)

1" NPT Stainless Steel Centrifugal Pump, 1-1/4" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,056.94

BIPN: BRM-CD70-1.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD120-1.5-2 VS-@)

1-1/4" NPT Stainless Steel Centrifugal Pump w/Viton Seal, 1-1/2" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,156.84

BIPN: BRM-CD120-1.5-2 VS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 2 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD70-2-2 VS-@)

1" NPT Stainless Steel Centrifugal Pump w/Viton Seal, 1-1/4" Suction, 2 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,129.33

BIPN: BRM-CD70-2-2 VS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD120-1.5-2-@)

1-1/4" NPT Stainless Steel Centrifugal Pump, 1-1/2" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,113.40

BIPN: BRM-CD120-1.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 2 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD70-2-2-@)

1" NPT Stainless Steel Centrifugal Pump, 1-1/4" Suction, 2 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,085.89

BIPN: BRM-CD70-2-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 1 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD70-1-2-@)

1" NPT Stainless Steel Centrifugal Pump, 1-1/4" Suction, 1 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,027.98

BIPN: BRM-CD70-1-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED 1.5 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-SOX1-1/4-1.5-2-@)

1-1/4" Flange Stainless Steel Centrifugal Pump, 2" Suction, 1.5 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE3) Motor Enclosure

$1,461.00

BIPN: BRM-SOX1-1/4-1.5-2 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 3 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD200-3-2 VS-@)

1-1/4" NPT Stainless Steel Centrifugal Pump w/Viton Seal, 1-1/2" Suction, 3 hp @ 3450 rpm, 230/460V - 3P, Extended Capacity, TEFC (IE2) Motor Enclosure

$1,266.88

BIPN: BRM-CD200-3-2 VS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

END-SUCTION CENTRIFUGAL PUMP CLOSE-COUPLED SS 3 HP, 3 PHASE, 230/460 VOLTS, 3450 RPM (BRM-CD120-3-2 VS-@)

1-1/4" NPT Stainless Steel Centrifugal Pump w/Viton Seal, 1-1/2" Suction, 3 hp @ 3450 rpm, 230/460V - 3P, TEFC (IE2) Motor Enclosure

$1,303.07

BIPN: BRM-CD120-3-2 VS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each
