Ballard Approved Vendor WWM-D2576SS-16-100

Name: FLANGE SO FF SS 316 100MM DIN2576 PN 10/16 (WWM-D2576SS-16-100)
Brand: Ballard Approved Vendor
SKU: WWM-D2576SS-16-100
Availability: InStock

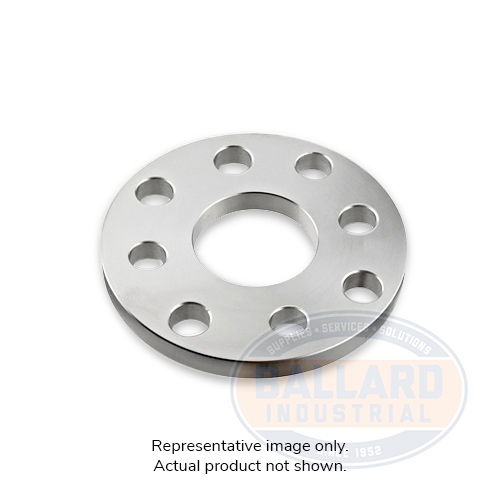

Flat Face Slip-On Flange, 100 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN:: WWM-D2576SS-16-100
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

Type Flat Face
Nominal Size 100 mm
Pressure Class 150 lb
Outside Diameter 220 mm
Thickness 20 mm
Number of Bolt Holes 8
Bolt Hole Size 18 mm
Bolt Circle Diameter 180 mm
Connection Type Slip-On
Material 316/316L Stainless Steel
Finish Plain

FLANGE SO FF SS 316 50MM DIN2576 PN 10/16 (WWM-D2576SS-16-050)

Flat Face Slip-On Flange, 50 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN: WWM-D2576SS-16-050 Quantity Interval: 1 / EA - Each

FLANGE SO FF SS 316 125MM DIN2576 PN 10/16 (WWM-D2576SS-16-125)

Flat Face Slip-On Flange, 125 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN: WWM-D2576SS-16-125 Quantity Interval: 1 / EA - Each

FLANGE SO FF SS 316 65MM DIN2576 PN 10/16 (WWM-D2576SS-16-065)

Flat Face Slip-On Flange, 65 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN: WWM-D2576SS-16-065 Quantity Interval: 1 / EA - Each

FLANGE SO FF SS 316 80MM DIN2576 PN 10/16 (WWM-D2576SS-16-080)

Flat Face Slip-On Flange, 80 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN: WWM-D2576SS-16-080 Quantity Interval: 1 / EA - Each

FLANGE SO FF SS 316 150MM DIN2576 PN 10/16 (WWM-D2576SS-16-150)

Flat Face Slip-On Flange, 150 mm, DIN 2576 PN 10/16, 150 lb, 316 SS

$0.00

BIPN: WWM-D2576SS-16-150 Quantity Interval: 1 / EA - Each

FLANGE SO FF CS 100MM DIN2576 PN 10/16 (WWM-D2576-16-100)

Flat Face Slip-On Flange, 100 mm, DIN 2576 PN 10/16, 150 lb, Carbon Steel

$0.00

BIPN: WWM-D2576-16-100 Quantity Interval: 1 / EA - Each

FLANGE SO FF CS 80MM DIN2576 PN 10/16 (WWM-D2576-16-080)

Flat Face Slip-On Flange, 80 mm, DIN 2576 PN 10/16, 150 lb, Carbon Steel

$0.00

BIPN: WWM-D2576-16-080 Quantity Interval: 1 / EA - Each

FLANGE SO FF CS 125MM DIN2576 PN 10/16 (WWM-D2576-16-125)

Flat Face Slip-On Flange, 125 mm, DIN 2576 PN 10/16, 150 lb, Carbon Steel

$0.00

BIPN: WWM-D2576-16-125 Quantity Interval: 1 / EA - Each

FLANGE SO FF CS 65MM DIN2576 PN 10/16 (WWM-D2576-16-065)

Flat Face Slip-On Flange, 65 mm, DIN 2576 PN 10/16, 150 lb, Carbon Steel

$0.00

BIPN: WWM-D2576-16-065 Quantity Interval: 1 / EA - Each
