Scotch® 054007-09910

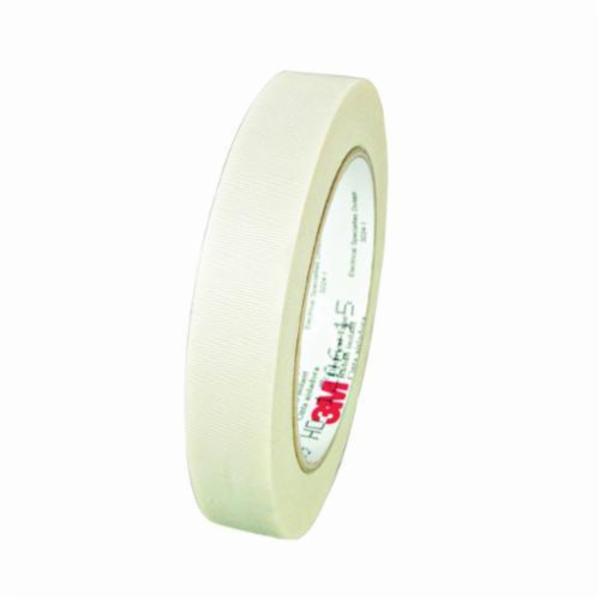

Scotch® 054007-09910 Premium Grade Electrical Tape, 3/4 in W x 66 yd L, 7 mil THK, Glass Cloth, White
- BIPN:
- MMM-54007-09910
- UPC:
- 54007099109
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / RL - Roll
-
Scotch® Electrical Tape, Premium Grade, 66 yd Length, 3/4 in Width, 7 mil Thickness, Glass Cloth, White, 3 in Core, Roll, Silicone Adhesive, Glass Cloth Backing, 40 in-oz Adhesion, 600 VAC, 3000 V Dielectric, 180 in-lb Tensile, 200 deg C
3M™ Glass Cloth Electrical Tape 69 is a white glass cloth tape with a high temperature thermosetting silicone pressure-sensitive adhesive. It is designed for use in 600 VAC dry location applications motors, and transformers with and without varnish coating. Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures. The thermosetting adhesive provides elevated temperature performance up to Class N 392 deg F (200 deg C) temperature rating. This tape provides insulation and solvent-resistant protection for use as coil cover, anchor, banding and core, layer and crossover insulation. This tape features a noncorrosive adhesive. It is conformable, printable and flame retardant.
-
- Type Premium Grade
- Length 66 yd
- Width 3/4 in
- Thickness 7 mil
- Material Glass Cloth
- Color White
- Core 3 in
- Shape Roll
- Adhesive Material Silicone
- Backing Material Glass Cloth
- Adhesion Strength 40 in-oz
- Voltage Rating 600 VAC
- Dielectric Strength 3000 V
- Tensile Strength 180 in-lb
- Temperature Rating 200 deg C
-
- Glass cloth tape with a high-temperature, thermosetting, silicone adhesive
- Adhesive provides an increased bond once applied in areas of high ambient temperatures
- Edge-tear resistant conformable, high-temperature flame resistant
- For use as a coil cover, anchor, banding and core, layer and crossover insulation
- Printable
- UL recognized for continuous use up to 200 deg C
