HARRINGTON CB150-10

HARRINGTON Hand Chain Hoist, Manual, Series: CB, 15 ton Load, 10 ft Lifting Height, 40-1/4 in Minimum Between Hooks, 3 in Hook Opening, 74 lb Pull to Lift, Dual Pawl Spring Brake, 15.9 in L x 19.4 in W x 10.6 in D Dimensions

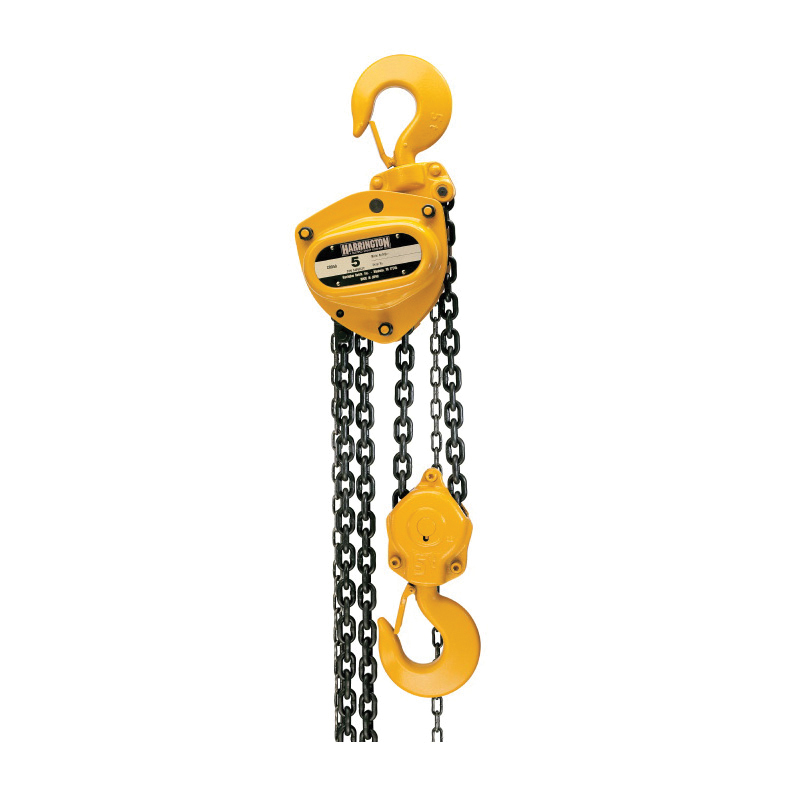

HARRINGTON CB Hand Chain Hoists combine heavy duty construction with top of the line internal components for the most demanding industrial applications. These hoists are built to withstand rugged, day-in, day-out use and they are easily maintained and repairable making them the perfect hoist for a long-lasting fleet of industrial products.

Applications: For use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair

• Series CB Series
• Load Capacity 15 ton
• Lifting Height 10 ft
• Minimum Between Hooks 40-1/4 in
• Hook Opening 3 in
• Pull to Lift Rated Load 74 lb
• Brake Type Weston-Style
• Dimensions 15.9 in L x 19.4 in W x 10.6 in D

• Premium grade components - the CB proves its unmatched pulling power in the most extreme applications, exceptional, heavy-grade components make this a long-lasting workhorse that will get the job done
• High impact steel housing - our CB has a rugged body and hand wheel cover made of heavy gauge high impact steel, giving much needed protection in extreme conditions and demanding applications to see every job through to the end
• Abrasion-resistant load chain - made from heat treated alloy steel for higher uniform strength, HARRINGTON legendary chain is second to none, it not only guards against scarring and wear, it keeps workers safer on the job by being the strongest chain
• Bearing-supported high strength pinion - HARRINGTON one-piece machined pinion offers increased strength and rigidity by keeping its gears aligned and running smoothly for greater efficiency during full-capacity lifts, the strategically positioned bea
• Maintenance-free slip clutch - the CB's slip clutch prevents the hoist from being used to lift damaging loads beyond rated capacity, this feature reduces costly downtime and repairs and maximizes the safety of the operator and co-workers in the immed
• Double pawl springs - feel secure with double pawl springs that provide redundancy for reliable operation in the event one spring is damaged
• 2 Years Warranty
