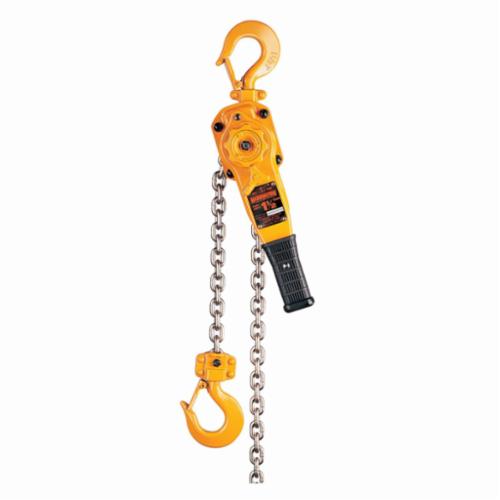

HARRINGTON LB060-20
LB Series Compact Lever Hoist, 6 ton Load, 20 ft H Lifting, 72 lb Rated, 2" Hook Opening
- BIPN:
- HAR-LB060-20
- Availability:
- Typically Ships 7 - 21 days
- Quantity Interval:
- 1 / EA - Each
This product is NON-RETURNABLE.
-
HARRINGTON Lever Hoist, Compact, Series: LB Series, 6 ton, 20 ft Lifting Height, 21.3 in Minimum Between Hooks, 2 in Hook Opening, 72 lb Pull to Lift, 16.3 in Lever Length, Steel Chain, 2 Reeving, Weston Brake, 21.3 in L x 8.5 in W x 7.5 in D
Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.
Applications: For use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair
-
- Type Compact
- Series LB Series
- Load Capacity 6 ton
- Lifting Height 20 ft
- Minimum Between Hooks 21.3 in
- Hook Opening 2 in
- Pull to Lift Rated Load 72 lb
- Lever Length 16.3 in
- Chain Material Steel
- Reeving 2
- Brake Type Weston
- Dimensions 21.3 in L x 8.5 in W x 7.5 in D
-
- Compact design makes it a perfect fit for use in tight quarters
- Steel body is more durable yet lighter weight than die-cast aluminum models
- Revolutionary freewheeling offers one handed operation
- 387 deg handle rotation and pivot and swivel top hook for easy rigging
- Single load chain through 3 tons
- Rugged, all-steel construction that actually weighs less than comparable aluminum models
- Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
- Protection against dirt and moisture with a totally enclosed brake mechanism
- Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
- Standard rubber grip for non-slip operation
- Grade 100 heat-treated load chain is nickel plated for corrosion resistance
- Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
- 2 Years Warranty
