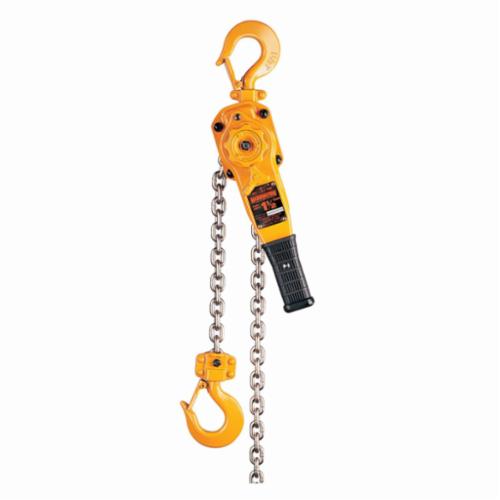

HARRINGTON LB090-15

HARRINGTON Lever Hoist, Compact, Series: LB Series, 9 ton, 15 ft Lifting Height, 26.8 in Minimum Between Hooks, 2.9 in Hook Opening, 78 lb Pull to Lift, 16.3 in Lever Length, Steel Chain, 3 Reeving, Weston Brake, 26.8 in L x 12 in W x 7.5 in D

Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.

Applications: For use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair

• Type Compact
• Series LB Series
• Load Capacity 9 ton
• Lifting Height 15 ft
• Minimum Between Hooks 26.8 in
• Hook Opening 2.9 in
• Pull to Lift Rated Load 78 lb
• Lever Length 16.3 in
• Chain Material Steel
• Reeving 3
• Brake Type Weston
• Dimensions 26.8 in L x 12 in W x 7.5 in D

• Compact design makes it a perfect fit for use in tight quarters
• Steel body is more durable yet lighter weight than die-cast aluminum models
• Revolutionary freewheeling offers one handed operation
• 390 degree handle rotation and pivot and swivel top hook for easy rigging
• Single load chain through 3 tons
• Rugged, all-steel construction that actually weighs less than comparable aluminum models
• Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
• Protection against dirt and moisture with a totally enclosed brake mechanism
• Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
• Standard rubber grip for non-slip operation
• Grade 100 heat-treated load chain is nickel plated for corrosion resistance
• Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
• 2 Years Warranty
