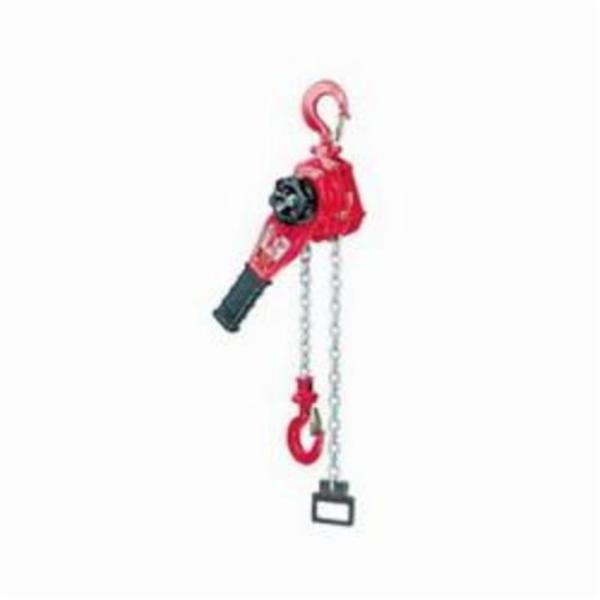

Coffing® Hoists 09432W

Coffing® Hoists Ratchet Lever Chain Hoist, Series: LSB-B, 1.5 ton, 15 ft Lifting Height, 13 in Minimum Between Hooks, 1-1/4 in Hook Opening, 59 lb Pull to Lift, 14-9/16 in Lever Length, 6 ft Chain Length, Hardened Steel Chain, 1 Reeving, Friction Brake, Cushion Grip/Short Handle

• Series LSB-B
• Load Capacity 1.5 ton
• Lifting Height 15 ft
• Minimum Between Hooks 13 in
• Hook Opening 1-1/4 in
• Pull to Lift Rated Load 59 lb
• Lever Length 14-9/16 in
• Chain Length 6 ft
• Chain Material Hardened Steel
• Reeving 1
• Brake Type Friction
• Handle Type Cushion Grip/Short

• Optional load limiter alerts operator of a possible overload by allowing the handle to rotate without lifting the higher than capacity load
• The load limiter can be field-installed
• Impact resistant, stamped steel housing withstands rigorous use
• Compact design is portable and easy to rig
• Double reduction gearing and short, cushioned grip handle provide easy operation with minimal handle effort
• 360 deg rotating handle provides versatile rigging options when used in confined spaces
• State-of-the-art free wheeling mechanism allows quick and easy one-handed take-up and positioning of slack chain
• Enclosed screw and disc type load brake stays clean and dry for positive load positioning
• Latches on hooks provide positive load engagement
• Options - shipyard hook available for 1-1/2 ton and 3 ton models
