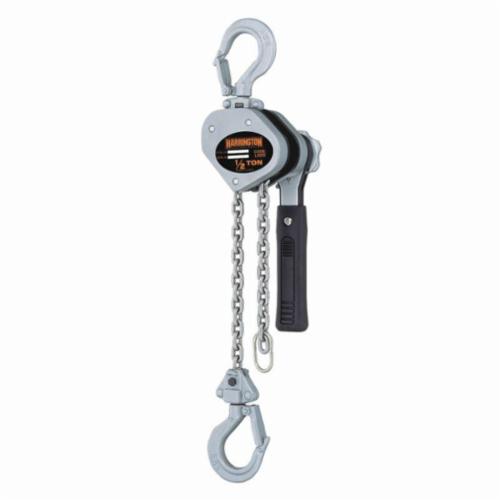

HARRINGTON LX005-5

HARRINGTON Lever Chain Hoist, Mini, Series: LX Series, 0.5 ton Load, 5 ft Lifting Height, 9.7 in Minimum Between Hooks, 1 in Hook Opening, 62 lb Pull to Lift, 7-1/8 in Lever Length, 6 ft Chain Length, Nickel Plated Chain, 1 Reeving, Weston Brake, Manual Handle, 3.9 x 3.7 in Dimensions

Harrington's LX mini puller is light weight compact and built to perform. It fits conveniently in a toolbox and will easily handle pulling and moving jobs in many applications including transportation, construction and plumbing. Available in two capacities to fit all applications. The 1/2 ton capacity is unique to the industry.

Applications: For use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair

• Type Mini
• Series LX Series
• Load Capacity 1/2 ton
• Lifting Height 5 ft
• Minimum Between Hooks 9.7 in
• Hook Opening 1 in
• Pull to Lift Rated Load 62 lb
• Lever Length 7-1/8 in
• Chain Length 6 ft
• Chain Material Nickel Plated
• Reeving 1
• Brake Type Weston
• Handle Type Manual
• Dimensions 3.9 x 3.7 in

• Durable die-cast aluminum body with steel frame is compact and light weight
• Very low headroom design for use in tight spaces
• Free-chain mechanism allows for quick adjustments
• Extremely low pulling force is required for operation
• Weston-style brake is totally enclosed to protect against dirt, dust and rain
• Single step reduction gear assures load holding performance
• Load chain guide mechanism permits smooth and quiet guiding of chain
• Rubber handle grip for ease of use
• Effortless to transport, install and store
• Electrostatic ename
• 2 Years Warranty
