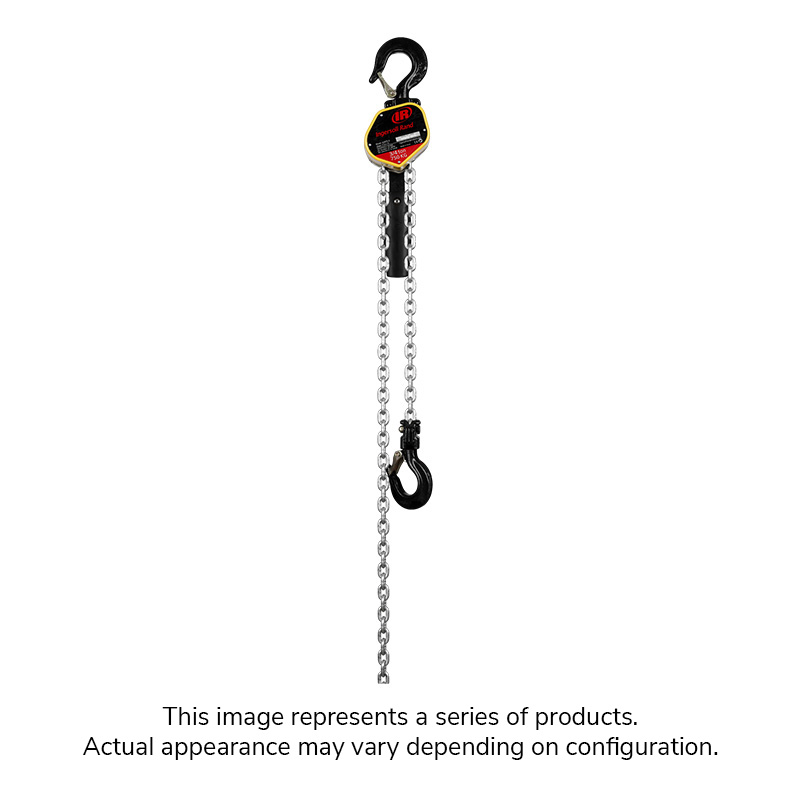

Ingersoll Rand® KX075-10

SideKick Series Mini Lever Chain Hoist, 3/4 Ton, 10 Foot Lift.

With 3/4 metric ton lifting capacity, the Ingersoll Rand SideKick Series mini lever and manual hoists are engineered to fit into the smallest of spaces, to go where you go to get the job done. Don't let the size fool you; with grade 80 chain, long life disc brakes and all steel construction the SideKick hoist will be by your side year after year to make your job easier.

Applications: The KX Sidekick Series chain hoists are ideal for working in tight spaces and elevated locations. They are also ideal for the following applications; general construction, maintenance and repairs

• Type Compact
• Series KX SideKick Series
• Load Capacity 3/4 ton
• Brake Type Double Pawl, Disc Brake System
• Chain Falls 1
• Headroom 10.2 in
• Suspension Type Hook
• Overload Protection No
• Lifting Height 10 ft
• Hook Opening 1.1 in
• Pull to Lift Rated Load 65.2 lb
• Lever Length 5.75 in
• Chain Type Zinc Plated Steel Link Chain
• Housing Material Steel

• Ultra-compact to fit into the smallest of spaces
• Grade 80 zinc plated or grade 100 Electro-plated load chain exceptional corrosion resistance for increased durability
• Heavy duty carrying bag with all KX lever hoists, standard
• Double pawl, disc brake system for a highly dependable brake system
• Heat treated steel side plates for increased durability
