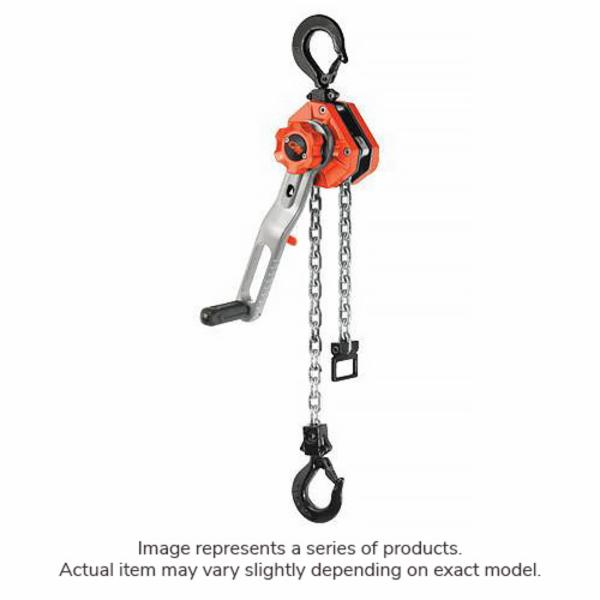

CM® TOR15010

Redefining lever-operated hoists, the CM® Tornado 360° features the revolutionary Sidewinder™ lever handle that allows for efficient operation in both lifting and pulling applications. Ergonomically designed for increased safety, the patent-pending CM Tornado 360° lets the operator to work up to 12 times faster and with as much as 30% less pull force than with conventional ratchet lever tools.

• Series Tornado 360°
• Load Capacity 1-1/2 ton
• Lifting Height 10 ft
• Minimum Between Hooks 14.76 in
• Hook Opening 1.22 in
• Pull to Lift Rated Load 58.5 lbf
• Lever Length 12.87 in
• Chain Material Steel
• Reeving 1
• Brake Type Weston
• Color Orange
• Dimensions 14.76 x 5.79 x 7.05 in

• Sidewider Lever Handle - This first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry. Its unique foldable handle and 360° rotating lever increases productivity while reducing the risk of operator injury.
• Convenient Directional Indicator - Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as lifting, lowering or neutral.
• Positive Load Control - Enclosed Weston-type brake stays clean and dry for precise load positioning.
• Built To Last - Lightweight aluminum housing withstands rigorous use and features high-quality, long-lasting bearings. Powder coat finish provides extra protection in harsh environments.
• Meets ASME B30.21
• Excellent Corrosion Protection - Robust chain guide and chain stripper made from cast steel and zinc-plated for corrosion protection.
• 100% Load Tested Zinc-Plated Chain - Protects against corrosion
• Easy Identification - Each unit has a unique serial number for easy and accurate identification.
• Easy & Smooth Free Chaining - For quick take up and positioning of slack chain - even with one hand.
• Designed not to accidently free chain while under load.
• Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist.
• Easy-To-Inspect Swivel Hooks - Bolt-on hooks with nylon locks help users comply with ASME B30.21 and B30.10 inspection requirements.
• Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.
• Precision 4-pocket liftwheel and chain guide provide better chain fit and alignment to reduce wear.
• Industry-Leading Warranty - Our lifetime warranty on all mechanical components, including the Sidewinder lever handle, is the industry's best warranty against manufacturing and material defects.
