CM® 433101

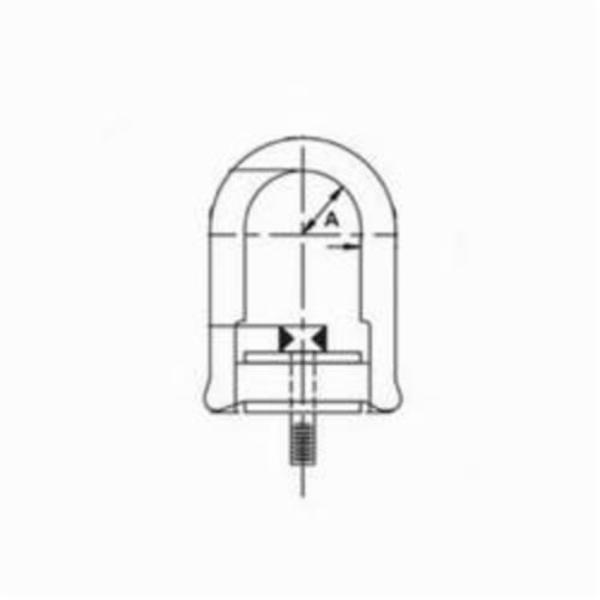

Heavy Duty Hoist Ring, 8000 lb Load, 1 in Bail, 7/8-9 x 1.2" Bolt

$224.52

BIPN:: CMH-433101
UPC:: 43927331017
Availability:: Typically Ships in 1 to 7 Days
Quantity Interval:: 1 / EA - Each

CM® Hoist Ring, Heavy Duty, 8000 lb, 180 deg Pivot Angle, 360 deg Swivel, 1 in Bail Dia, 7/8-9 x 1.2" Bolt, 160 ft-lb Installation Torque, Surface Mount, 7.37 in L x 5.1 in W

Type Heavy Duty
Load Capacity 8000 lb
Pivot Angle 180 deg
Swivel Angle 360 deg
Bail Diameter 1 in
Thread Size 7/8-9
Installation Torque 160 ft-lb
Mounting Type Surface
Dimensions 7.37 in L x 5.1 in W

Economical forged ring is strong and impact resistant
Pivots 180 deg and swivels 360 deg simultaneously
Back and side pins constructed of one piece of forged alloy steel
100 percent magnetic particle inspected
Bale and center body are closed-die forged to assure superior grain flow and consistent dimensional accuracy
Large bale allows for use of a variety of hook sizes
5:1 design factor
Used in the same manner as shoulder eye bolts, hoist rings pivot or swivel to provide a steady lift and maintain higher working load limits than shoulder eye bolts when lifting at angles
1.2 in bolt length
