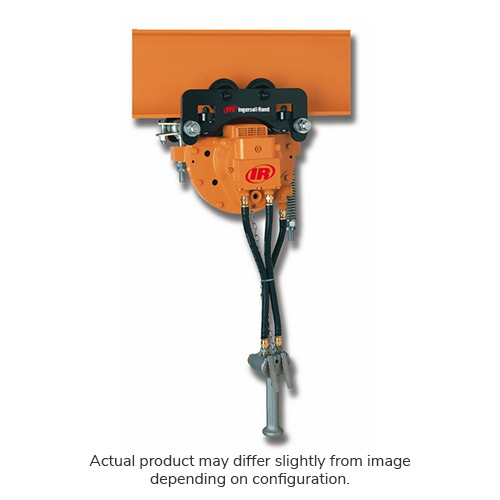

Ingersoll Rand® MTKS-307A

MTK Series Air Driven Hoist Tractor, 2 Motor Pendent Control.

The MTK series air driven tractor is based on the reliable MLK air chain hoist design and is capable of pushing, pulling or positioning loads on beams up to 6 metric tons. It uses a polyurethane wheel with excellent gripping characteristics to drive on the underside of the beam. It can be used with any hoist. It comes with 7 ft of live air pendent control and a universal tow bar.

• Series MTK Series
• Load Capacity 6 ton
• Fits Beam Flange Width 2.66 to 6.25 in
• Minimum Radius Curve 30 in
• Speed 165 fpm
• Wheel Material Cast Iron
• Color Yellow

• Up to 6 metric ton towing capacity.
• Interchangeability with MLK and HLK parts.
• Balanced gear package and air motor provides a range of speed from slow creep to 165 fpm.
• Million cycle performance tested air motor with spring-loaded vanes provides instant starting and slow speed control.
• Heat treated planetary gearing assures longer life and reduced maintenance.
• Self-adjusting, spring applied, nonasbestos disc brake is air released for smooth starts and stops.
• Drive tire is made from extremely durable polyurethane material with a temperature rating of 185-degrees F providing excellent 'adjustable' gripping characteristics for positive traction.
• Tight turning radius of 30 in.
• Universal' solid cast iron wheels will fit both flat and tapered beams.
• Wheels are greasable for longer life.
• Standard tractor fits beam flange width of 2-21/32 - 6-1/4 in.
• Roller guides made from high alloy steel keep tractor running smoothly.
• Tractor operates with a full flow (live air)pendent enhancing load spotting control.
• 7 ft pendent length is standard.
• Tow bar included with tractor.
