Louisville® FE3228

SHIPPING NOTICE: Carrier shipping options are unavailable for this product.

Louisville® Extension Ladder, D-Rung Type IA, Series: FE3200, 28 ft Overall Length, A14.5, 300 lb, Fiberglass, 25 ft Maximum Working Length, 14 ft Section Length, 12 in Adjustable Increments, 17-1/16 in Base x 16-1/16 in Fly Outside Shoe Base Width, Non-Conductive Rail, Swivel Shoe

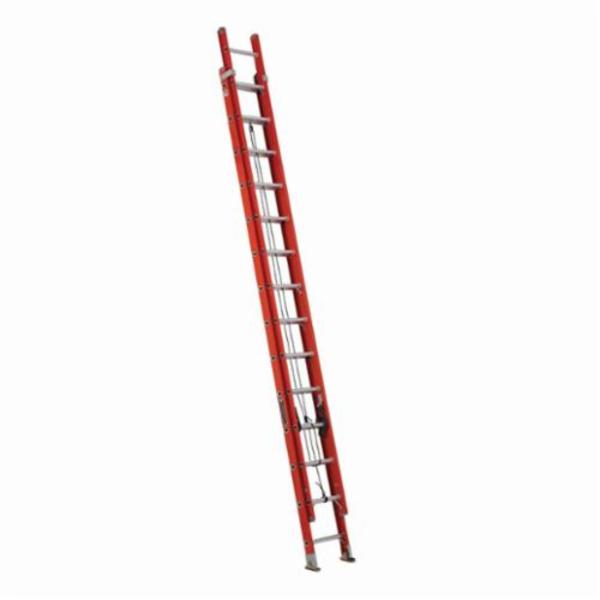

This Louisville 28 foot fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville FE3228 fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

• Type D-Rung Type IA
• Series FE3200
• Overall Length 28 ft
• ANSI Code A14.5
• Load Capacity 300 lb
• Material Fiberglass
• Maximum Working Length 25 ft
• Section Length 14 ft
• Adjustable Increments 12 in
• Outside Shoe Base Width 17-1/16 in Base x 16-1/16 in Fly
• Rail Type Non-Conductive
• Shoe Type Swivel

• Quick latch, steel swivel safety shoe with metal shield
• Outside slide guides
• Mar-resistant rail end caps
• 6-1/4 in step height
• Actual cubic ft 11.900 cu-ft
• 14-11/16 in base x 13-11/16 in fly inside width
• Rail depth is 3-1/4 in
