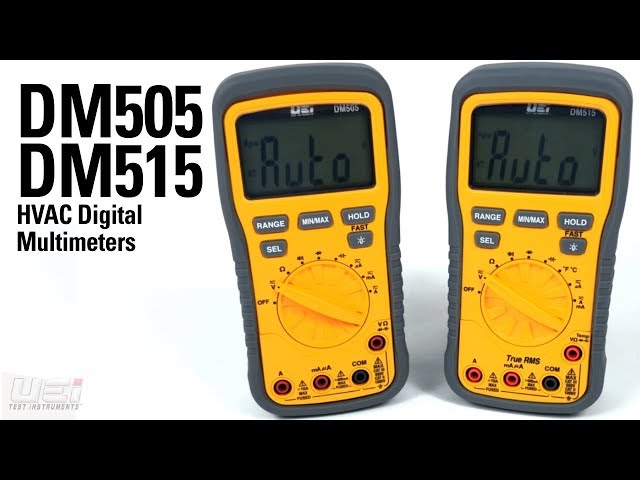

UEi Test Instruments™ DM515

UEi Test Instruments™ Digital Multimeter, True RMS, 1000 VAC/VDC, 10 A AC/DC, 40 MOhm Resistance, Safety Rating: CAT III 600 V/CAT II 1000 V, 9999 uF Capacitance, +/-1% +3 Digits, +/-2% +3 Digits, +/-0.5% +3 Digits, +/-1.5% +5 Digits, +/-1.2% +5 Digits, +/-0.8% +5 Digits, +/-1.5% +5 Digits, +/-3% +5 Digits, +/-1.5% +3.6 deg F, +/-1.5% +3 deg F Accuracy, 500 Hz Bandwidth, 0.1 mV to 1 V, 0.001 to 0.01 A, 0.1 Ohm to 0.001 MOhm, 0.01 MOhm, 0.01 nF to 1 uF, 0.1 deg F, 1 deg F Resolution, Backlit Display, AA Battery, Yes Diode Test, 6.49 x 3.3 x 2.17 in Dimensions, -328 to 2462 deg F, IP42 Enclosure

Includes: ATL55 Standard Test Lead Without Cap, (2) AA Batteries, AAC3 Alligator Clip, ATT71 K-Type Temperature Probe/Thermocouple, AC519 Zippered Pouch/Carrying Case and (English/Spanish/French) Manual

Application: For measuring temperature via K-type thermocouples, voltage, current, resistance, continuity, capacitance and to check system control boards, live wires, motors, startup capacitors and compressors

• Accuracy +/-1% +3 Digits, +/-2% +3 Digits, +/-0.5% +3 Digits, +/-1.5% +5 Digits, +/-1.2% +5 Digits, +/-0.8% +5 Digits, +/-1.5% +5 Digits, +/-3% +5 Digits, +/-1.5% +3.6 deg F, +/-1.5% +3 deg F
• Amperage Rating 10 A AC/DC
• Bandwidth 500 Hz
• Battery Type AA
• Capacitance 9999 uF
• Dimensions 6.49 x 3.3 x 2.17 in
• Diode Test Yes
• Display Type Backlit
• Enclosure Type IP42
• Resistance 40 MOhm
• Resolution 0.1 mV to 1 V, 0.001 to 0.01 A, 0.1 Ohm to 0.001 MOhm, 0.01 MOhm, 0.01 nF to 1 uF, 0.1 deg F, 1 deg F
• Safety Rating CAT III 600 V/CAT II 1000 V
• Temperature Rating -328 to 2462 deg F
• Type True RMS
• Voltage Rating 1000 VAC/VDC

• Micro/milli amps
• Micro/milli volts
• Continuity
• 1 ms fast response min/max
• Fused test lead inputs
• Auto/manual ranging
• High resolution backlit display
• Min/max
• Auto selection
• Magnetic mount
• Accuracy - +/-1% +3 digits 45 to 500 Hz, +/-2% +3 digits 500 to 1 kHz at 6 mV to 1000 VAC, +/-0.5% +3 digits at 6 mV to 1000 VDC, +/-1.5% +5 digits at 6 to 10 A AC, +/-1.2% +5 digits at 6 to 10 A DC, +/-0.8% +5 digits at 600 Ohm to 6 MOhm, +/-1.5% +5
• Resolution - 0.1 mV to 1 V at 6 mV to 1000 VAC/VDC, 0.001 to 0.01 A at 6 to 10 A AC/DC, 0.1 Ohm to 0.001 MOhm at 600 Ohm to 6 MOhm, 0.01 MOhm at 40 MOhm, 0.01 nF to 1 uF at 10 nF to 9999 uF, 0.1 deg F at -328 to 999 deg F, 1 deg F at 1000 to 2462 deg
• 2 years Limited Warranty
