Leviton® 113

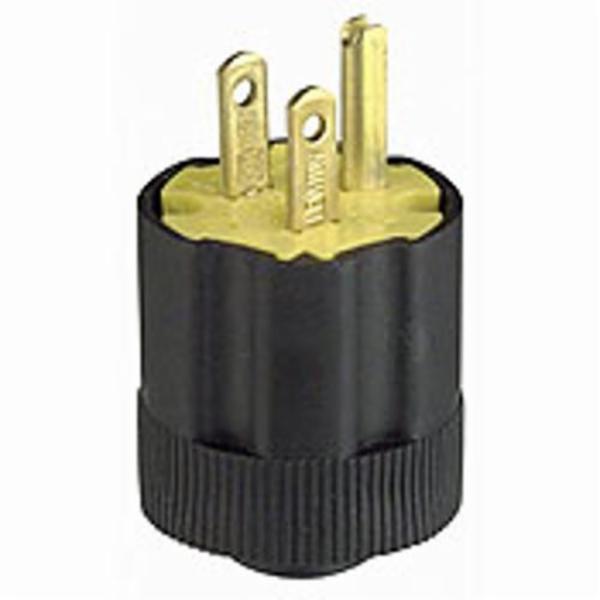

Leviton® 113 Cable Mount Grounding Straight Blade Straight Blade Plug With Vinyl Inner Assembly, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
- BIPN:
- LEV-113
- UPC:
- 78477100363
- Availability:
- Typically Ships in 1 to 7 Days
- Quantity Interval:
- 1 / EA - Each
-
Leviton® Straight Blade Plug, Cable Mount Grounding Straight Blade, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P/1-15P, Residential Grade, 0.396 to 0.562 in Cord Dia, -40 to 65 deg C, TPE Rubber, Black, 1.53 in Dia x 1.64 in H
Leviton® offers a large selection of 15, 20, 30 and 50 A straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
-
- Type Cable Mount Grounding Straight Blade
- Voltage Rating 125 VAC
- Amperage Rating 15 A
- Number Of Poles 2
- Number Of Wires 3
- NEMA Rating NEMA 5-15P/1-15P
- Grade Residential
- Cord Diameter 0.396 to 0.562 in
- Temperature Rating -40 to 65 deg C
- Material TPE Rubber
- Color Black
- Dimensions 1.53 in Dia x 1.64 in H
-
- Triple drive head screws standard, Philips and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
