Powers® 7441SD1

Powers® Power-Stud+® SD1 Wedge Anchor, Expansion, 3/4 in Dia, 4-3/4 in Overall Length, 2-1/4 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 3/4 in Drill, 3/4-10, Hex Head, UNC, 12685 lb Shear Strength, 7860 lb Tensile

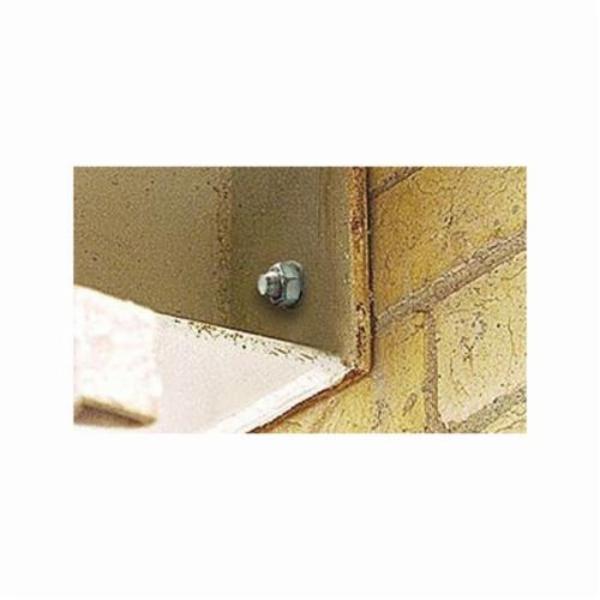

The Power-Stud anchor is a fully threaded, torque-controlled, wedge expansion anchor. It is available in threaded, rod hanger and tie-wire versions suitable for applications in solid concrete and grout filled concrete masonry. The carbon steel threaded version is suitable for a variety of applications. The drill bit diameter necessary for proper installation is the same as the anchor diameter.

• Type Expansion
• Diameter 3/4 in
• Overall Length 4-3/4 in
• Thread Length 2-1/4 in
• Material Carbon Steel
• Finish Zinc Plated
• Minimum Embedment Depth 3-3/8 in
• Drill Size 3/4 in
• Thread Size 3/4-10
• Head Type Hex
• Thread Type UNC
• Shear Strength 12685 lb
• Tensile Strength 7860 lb

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
• Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
