Proto® JRR07520

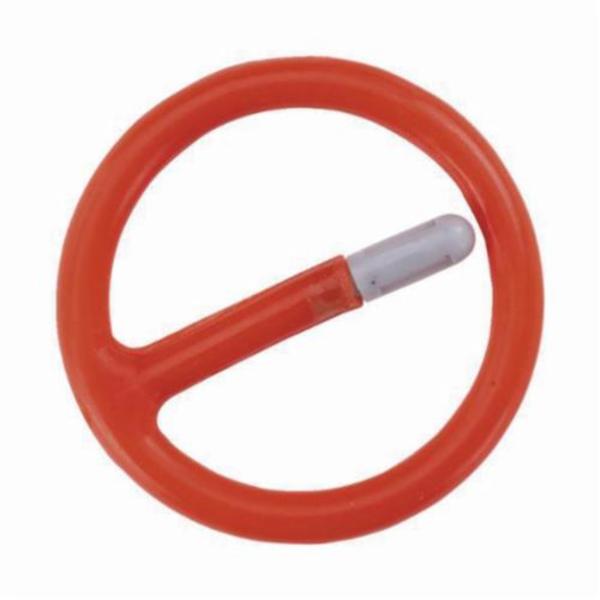

Proto® Retaining Ring, Crush Gauge, 3/4 in Drive, 1-7/16 in Overall Length, For Use With: Impact Socket, Steel, Plastic Coated, Red, 3/16 in H x 1-7/16 in W

• Type Crush Gauge
• Drive Size 3/4 in
• Overall Length 1-7/16 in
• Suitable For Use With Impact Socket
• Material Steel
• Finish Plastic Coated
• Color Red
• Dimensions 3/16 in H x 1-7/16 in W

• Retaining rings are used to help secure sockets onto drive tools
• They are not intended to bear any load
• The rotational forces are between the drive tool and the socket
• Designed with a resin crush gauge to help indentify when to replace worn sockets
• The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
• Drive tool and socket should line up when in use and should not pinch the crush gauge
• Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
• This action pinches the small fin or the crush gauge on these retaining rings
• If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced
• One piece construction, no loose parts
• Pin is made of resin which allows the material to compress without breaking
