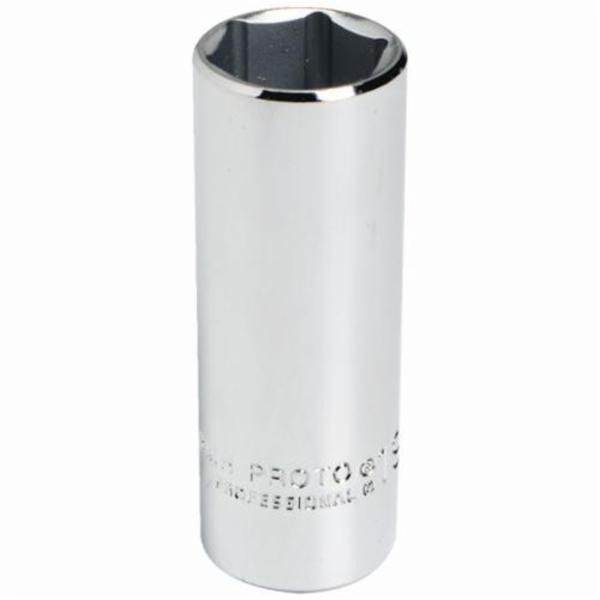

Proto® J5010MH

Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Metric, Square Drive, 3/8 in Drive, 10 mm Socket, 54 mm Overall Length, 10 mm Opening Depth, 16.5 mm Drive End Width, 14.8 mm Socket End Width, Ball Locking, 6 Points, 42.8 mm Bolt Clearance Depth, Alloy Steel, Full Polished

• Type Deep Length
• Impact Rated No
• Measurement System Metric
• Drive Type Square
• Drive Size 3/8 in
• Socket Size 10 mm
• Overall Length 54 mm
• Opening Depth 10 mm
• Drive End Width 16.5 mm
• Socket End Width 14.8 mm
• Locking Type Ball
• Number of Points 6
• Bolt Clearance Depth 42.8 mm
• Material Alloy Steel
• Finish Full Polished

• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
