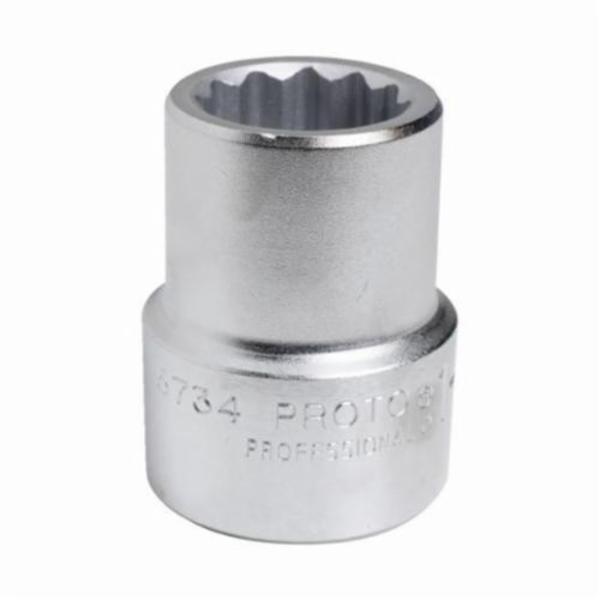

Proto® J5782

Proto® TorquePlus™ Socket, Standard Length, No Impact Rated, Measurement System: Imperial, Square Drive, 1 in Drive, 2-9/16 in Socket, 4-1/8 in Overall Length, 1-5/8 in Opening Depth, 2-21/32 in Drive End Width, 3-37/64 in Socket End Width, Ball Locking, 12 Points, 2-27/64 in Bolt Clearance Depth, Alloy Steel, Satin

• Type Standard Length
• Impact Rated No
• Measurement System Imperial
• Drive Type Square
• Drive Size 1 in
• Socket Size 2-9/16 in
• Overall Length 4-1/8 in
• Opening Depth 1-5/8 in
• Drive End Width 2-21/32 in
• Socket End Width 3-37/64 in
• Locking Type Ball
• Number of Points 12
• Bolt Clearance Depth 2-27/64 in
• Material Alloy Steel
• Finish Satin

• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
• The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener
