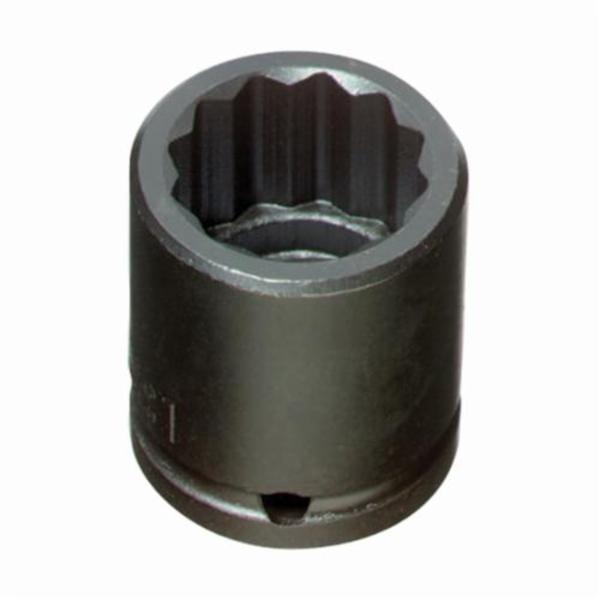

Proto® J7416

Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1/2 in Socket, 1-1/2 in Overall Length, 13/32 in Opening Depth, 15/16 in Drive End Width, 51/64 in Socket End Width, Side Locking Hole Locking, 12 Points, 27/32 in Bolt Clearance Depth, Alloy Steel, Black Oxide

• Type Standard Length
• Impact Rated Yes
• Measurement System Imperial
• Drive Type Square
• Drive Size 1/2 in
• Socket Size 1/2 in
• Overall Length 1-1/2 in
• Opening Depth 13/32 in
• Drive End Width 15/16 in
• Socket End Width 51/64 in
• Locking Type Side Locking Hole
• Number of Points 12
• Bolt Clearance Depth 27/32 in
• Material Alloy Steel
• Finish Black Oxide

• The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• Socket size stamped on tool for easy identification
• The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
