Barmesa® 3KTM503

Name: SUBMERSIBLE DEWATERING PUMP 3" DISCHARGE, 5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 12.2 MAX AMPS (BRM-3KTM503-@)
Brand: Barmesa®
SKU: BRM-3KTM503
Price: 3596 USD
Availability: InStock

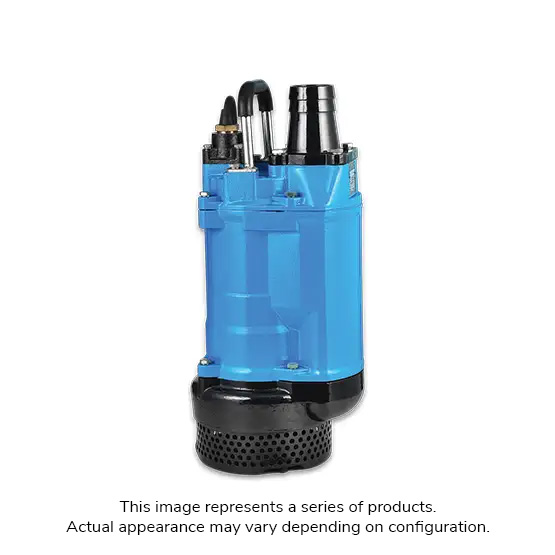

3" Submersible Dewatering Pump, Hose Coupling Discharge, 5 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$3,596.00

BIPN:: BRM-3KTM503
Availability:: Typically Ships 7 - 14 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Efficiently draining water from flooded areas, construction sites, and underground spaces, Barmesa KTM Series dewatering pumps are common in industrial, municipal, and commercial settings to maintain dry and safe environments by preventing water damage and facilitating drainage. Dewatering pumps are crucial for dewatering basements, excavations, utility vaults, swimming pools, and ponds, playing a pivotal role in effective water management and flood prevention.

Series KTM
Discharge 2 in Hose Coupling
Switch Actuation Manual
Solids Handling Design Bottom Strainer
Liquid Temperature Rating 104 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Motor Shaft Material AISI 420 Stainless Steel
Impeller Type Semi-Open
Impeller Material High Chrome Alloy
Seal Type Double Mechanical
Seal Material Silicon Carbide, Carbon-Silicon Carbide
Hardware Material 304 Stainless Steel
Horsepower 5 hp @ 3450 rpm
Voltage Rating 230V - 3P - 60 Hz
Max Amperage 12.2 A
Motor Housing Material Cast Iron ASTM A-48 Class 30
Cord Length 50 ft
Dimensions 11 in L x 8.5 in W x 25 in H
Weight 139 lb

Owner's Manual

Data Sheet

SUBMERSIBLE DEWATERING PUMP 2" DISCHARGE, 3 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 8.2 MAX AMPS (BRM-2KTM303-@)

2" Submersible Dewatering Pump, Hose Coupling Discharge, 3 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$2,341.82

BIPN: BRM-2KTM303 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 3" DISCHARGE, 7.5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 18.2 MAX AMPS (BRM-3KTM753-@)

3" Submersible Dewatering Pump, Hose Coupling Discharge, 7.5 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$4,460.69

BIPN: BRM-3KTM753 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 4" DISCHARGE, 15 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 36.4 MAX AMPS (BRM-4KTM1503-@)

4" Submersible Dewatering Pump, Hose Coupling Discharge, 15 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$7,919.45

BIPN: BRM-4KTM1503 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 4" DISCHARGE, 10 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 24.8 MAX AMPS (BRM-4KTM1003-@)

4" Submersible Dewatering Pump, Hose Coupling Discharge, 10 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$5,926.76

BIPN: BRM-4KTM1003 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 2" DISCHARGE, 2 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 5.4 MAX AMPS (BRM-2KTM203-@)

2" Submersible Dewatering Pump, Hose Coupling Discharge, 2 hp @ 3450 rpm, 230 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$2,105.33

BIPN: BRM-2KTM203 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 3" DISCHARGE, 5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3450 RPM, 6.6 MAX AMPS (BRM-3KTM504-@)

3" Submersible Dewatering Pump, Hose Coupling Discharge, 5 hp @ 3450 rpm, 460 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$3,596.00

BIPN: BRM-3KTM504 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 2" DISCHARGE, 3 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3450 RPM, 4.1 MAX AMPS (BRM-2KTM304-@)

2" Submersible Dewatering Pump, Hose Coupling Discharge, 3 hp @ 3450 rpm, 460 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$2,341.82

BIPN: BRM-2KTM304 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 3" DISCHARGE, 7.5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3450 RPM, 9.6 MAX AMPS (BRM-3KTM754-@)

3" Submersible Dewatering Pump, Hose Coupling Discharge, 7.5 hp @ 3450 rpm, 460 V - 3P, Cast Iron Enclosure, NPT Adapter Included

$4,460.69

BIPN: BRM-3KTM754 Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE DEWATERING PUMP 2" DISCHARGE, 2 HP, 1 PHASE, 230 VOLTS, 60 HZ, 3450 RPM, 10 MAX AMPS (BRM-2KTM202-@)

2" Submersible Dewatering Pump, Hose Coupling Discharge, 2 hp @ 3450 rpm, 230 V - 1P, Cast Iron Enclosure, NPT Adapter Included

$2,298.16

BIPN: BRM-2KTM202 Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each
