Barmesa® BGP502DS

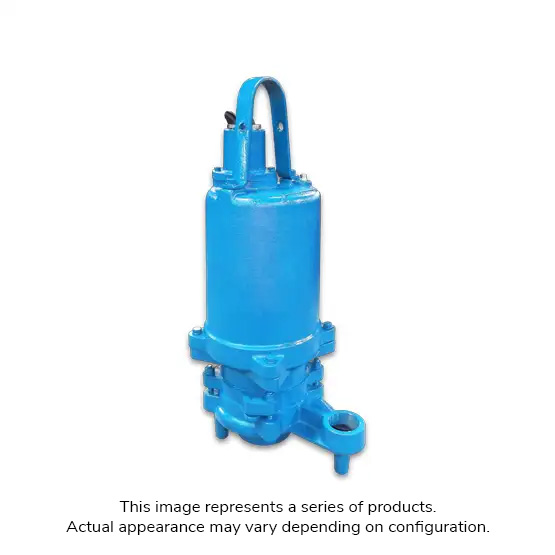

Name: SUBMERSIBLE GRINDER PUMP 5 HP, 1 PHASE, 230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP502DS-@)
Brand: Barmesa®
SKU: BRM-BGP502DS
Price: 6794.7 USD
Availability: InStock

2" NPT Submersible Grinder Pump, 5 hp @ 3500 rpm, 230 V - 1P, Cast Iron Enclosure

$6,794.70

BIPN:: BRM-BGP502DS
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Engineered to macerate and pump wastewater laden with solid materials and debris, Barmesa grinder pumps are prevalent in sewage systems, septic tanks, and industrial setups. The effectiveness of grinder pumps lies in preventing clogs and blockages in pipes and sewage systems, ensuring the smooth and efficient transportation and disposal of wastewater.

Series BGP-DS
Discharge 2 in FNPT
Switch Actuation Manual
Solids Handling Design Radial Cutter, Shreading Ring
Liquid Temperature Rating 104 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Motor Shaft Material 420 Stainless Steel
Impeller Type 10-Vane, Vortex, Dynamically Balanced
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Double Mechanical
Seal Material Silicon Carbide, Carbon Ceramic, Buna-N
Hardware Material Stainless Steel
Horsepower 5 hp @ 3500 rpm
Voltage Rating 230V - 1P - 60 Hz
Max Amperage 39 A
Motor Housing Material Cast Iron ASTM A-48 Class 30
Cord Length 40 ft
Cord Type/Gauge SO 8/4C
Dimensions 14 in L x 9.5 in W x 29 in H
Weight 199 lb

Owner's Manual

Data Sheet
