Barmesa® BGP503DS-208V

Name: SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 208 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP503DS-208V-@)
Brand: Barmesa®
SKU: BRM-BGP503DS-208V
Price: 7504 USD
Availability: InStock

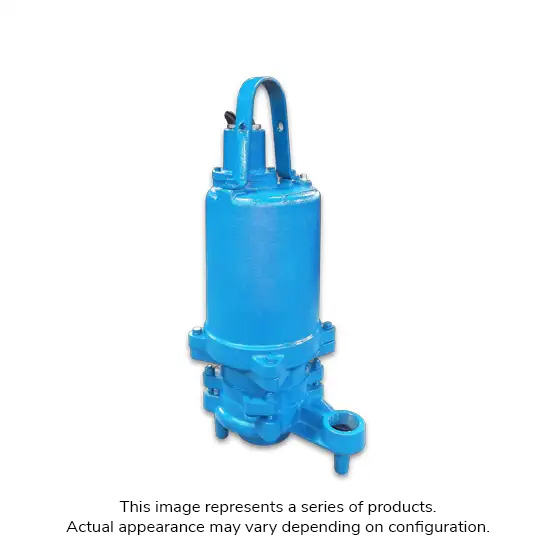

2" NPT Submersible Grinder Pump, 5 hp @ 3500 rpm, 208 V - 3P, Cast Iron Enclosure

$7,504.00

BIPN:: BRM-BGP503DS-208V
Availability:: Typically Ships 7 - 21 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Engineered to macerate and pump wastewater laden with solid materials and debris, Barmesa grinder pumps are prevalent in sewage systems, septic tanks, and industrial setups. The effectiveness of grinder pumps lies in preventing clogs and blockages in pipes and sewage systems, ensuring the smooth and efficient transportation and disposal of wastewater.

Series BGP-DS
Discharge 2 in FNPT
Switch Actuation Manual
Solids Handling Design Radial Cutter, Shreading Ring
Liquid Temperature Rating 104 deg F (max)
Pump Casing Material Cast Iron ASTM A-48 Class 30
Motor Shaft Material 420 Stainless Steel
Impeller Type 10-Vane, Vortex, Dynamically Balanced
Impeller Material Cast Iron ASTM A-48 Class 30
Seal Type Double Mechanical
Seal Material Silicon Carbide, Carbon Ceramic, Buna-N
Hardware Material Stainless Steel
Horsepower 5 hp @ 3500 rpm
Voltage Rating 208V - 3P - 60 Hz
Motor Housing Material Cast Iron ASTM A-48 Class 30
Cord Length 40 ft
Cord Type/Gauge SO 10/4C
Dimensions 14 in L x 9.5 in W x 29 in H
Weight 199 lb

Owner's Manual

Data Sheet

SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP503DS-@)

2" NPT Submersible Grinder Pump, 5 hp @ 3500 rpm, 230 V - 3P, Cast Iron Enclosure

$6,528.37

BIPN: BRM-BGP503DS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 208 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGPH503DS-208V-@)

2-1/2" Flange Submersible Grinder Pump, 5 hp @ 3500 rpm, 208 V - 3P, Cast Iron Enclosure

$7,504.00

BIPN: BRM-BGPH503DS-208V Availability: Typically Ships 5 - 6 weeks Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 3 PHASE, 208 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP303DS-208V-@)

2" NPT Submersible Grinder Pump, 3 hp @ 3500 rpm, 208 V - 3P, Cast Iron Enclosure

$6,047.00

BIPN: BRM-BGP303DS-208V Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 3 PHASE, 208 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGPH303DS-208V-@)

2-1/2" Flange Submersible Grinder Pump, 3 hp @ 3500 rpm, 208 V - 3P, Cast Iron Enclosure

$6,047.00

BIPN: BRM-BGPH303DS-208V Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 3 PHASE, 208/230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP303DS-@)

2" NPT Submersible Grinder Pump, 3 hp @ 3500 rpm, 230 V - 3P, Cast Iron Enclosure

$6,047.45

BIPN: BRM-BGP303DS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 3 HP, 1 PHASE, 208/230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP302DS-@)

2" NPT Submersible Grinder Pump, 3 hp @ 3500 rpm, 230 V - 1P, Cast Iron Enclosure

$6,321.36

BIPN: BRM-BGP302DS Availability: Typically Ships 7 - 14 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGPH503DS-@)

2-1/2" Flange Submersible Grinder Pump, 5 hp @ 3500 rpm, 230 V - 3P, Cast Iron Enclosure

$6,528.37

BIPN: BRM-BGPH503DS Availability: Typically Ships 5 - 6 weeks Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGP504DS-@)

2" NPT Submersible Grinder Pump, 5 hp @ 3500 rpm, 460 V - 3P, Cast Iron Enclosure

$6,528.37

BIPN: BRM-BGP504DS Availability: Typically Ships 7 - 21 days Quantity Interval: 1 / EA - Each

SUBMERSIBLE GRINDER PUMP 5 HP, 3 PHASE, 460 VOLTS, 60 HZ, 3500 RPM, MANUAL, 40 FT CORD (BRM-BGPH504DS-@)

2-1/2" Flange Submersible Grinder Pump, 5 hp @ 3500 rpm, 460 V - 3P, Cast Iron Enclosure

$6,528.37

BIPN: BRM-BGPH504DS Availability: Typically Ships 6 - 7 weeks Quantity Interval: 1 / EA - Each
