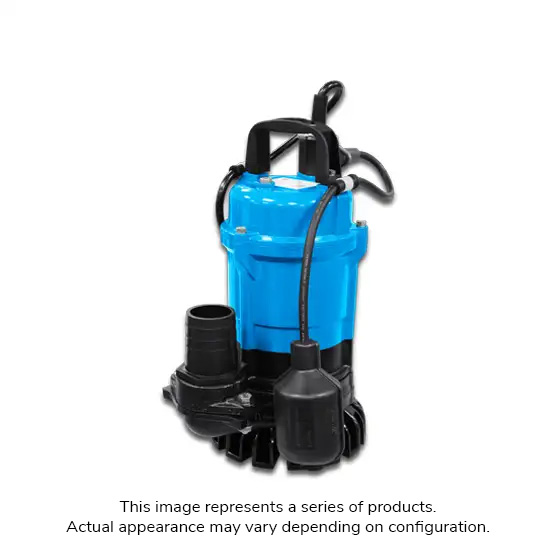

Barmesa® 2AHS203

Name: SUBMERSIBLE SUMP / UTILITY PUMP 2 HP, 3 PHASE, 230 VOLTS, 60 HZ, 3500 RPM, MANUAL, 15 FT CORD (BRM-2AHS203-@)
Brand: Barmesa®
SKU: BRM-2AHS203
Price: 1115.83 USD
Availability: InStock

2" NPT Submersible Sump/Utility Pump, 2 hp@ 3450 rpm, 230V - 3P, Cast Iron Volute, Aluminum Motor Housing, 15 ft Cord

$1,115.83

BIPN:: BRM-2AHS203
Availability:: Typically Ships 7 - 14 days
Quantity Interval:: 1 / EA - Each

This product is NON-RETURNABLE.

Designed to efficiently remove water from enclosed spaces like sump pits, basements, and utility areas, Barmesa Sump and Utility pumps prevent flooding and water damage by swiftly pumping out accumulated water. Widely used in residential, commercial, and industrial settings, utility/sump pumps aid in maintaining dry and safe environments while facilitating drainage in diverse situations.

Series 2AHS
Discharge 2 in FNPT
Switch Actuation Manual
Solids Handling Design Vortex Impeller
Maximum Diameter of Solids 0.25 in
Liquid Temperature Rating 104 deg F (max)
Pump Casing Material Cast Iron FC-200
Motor Shaft Material 410 Stainless Steel
Impeller Type 8-Vane, Semi-Open Vortex
Impeller Material Hytrel®
Seal Type Double Mechanical
Seal Material Carbon Ceramic Upper, Silicon Carbide Lower
Hardware Material 304 Stainless Steel
Horsepower 2 hp @ 3450 rpm
Voltage Rating 230V - 3P - 60 Hz
Max Amperage 7 A
Motor Housing Material Aluminum Alloy ADC12
Cord Length 15 ft
Cord Type/Gauge 16/4C
Dimensions 12.5 in L x 7.5 in W x 12.5 in H
Weight 42 lb

Owner's Manual

Data Sheet
